60×20mm GPS Tracking and Communication Aluminum Housing

Compared with plastic housings, the aluminum body provides better structural strength and a metal finish, and supports CNC-machined interfaces, mounting holes, threaded holes, SMA antenna holes, and heat dissipation slots. Boyuan Hardware, with over 20 years of experience and a ~10,000㎡ factory, provides cutting, CNC, drilling, tapping, surface treatment, laser engraving, silkscreen, inspection, and assembly.

Core Advantages

01 | 60×20mm Wide and Slim Design

The 60mm wide × 20mm high cross-section size provides ample packaging space for electronic equipment.

The 60mm width is wider than the common 52-58mm specifications, accommodating larger PCB layouts and supporting more side-by-side function modules and interface design, meeting multi-channel input/output layout requirements; the 20mm height maintains a slim device appearance while providing ample component mounting space, accommodating electrolytic capacitors (typically 16-18mm in height), small transformers, relays, and medium-height components, supporting the integration needs of relatively complex circuit systems.

02 | Aluminum Extrusion Structure

The enclosure body is formed by aluminum alloy profile extrusion. The cross-section size of the aluminum extrusion enclosure is fixed, while the length can be cut according to actual product requirements. Therefore, the same specification enclosure can adapt to PCBs and electronic modules of different lengths. This structure is especially suitable for electronic products requiring series development.

03 | Suitable for PCB Mounting

The aluminum extrusion electronic enclosure can be designed with corresponding mounting slots or support structures according to the internal structure, for installing PCBs and other electronic components. The interior is standard-equipped with circuit board card slots, and the PCB can be directly inserted and fixed without additional screws.

04 | CNC Custom Machining Support

The standard profile is only the starting point. Boyuan Hardware can perform CNC machining on the 60×20mm aluminum enclosure according to customer drawings, including:

• Interface openings (USB, RJ45, aviation plugs, BNC interfaces, power interfaces, SMA antenna interfaces, etc.)
• Screw holes and positioning holes
• Threaded holes and counterbore holes
• Heat dissipation slots and ventilation holes
• Screen window openings
• Button holes and switch holes
• Mounting holes and wall-mounting holes
• Grooves and steps
• Chamfering
• Other custom structures

05 | Length Customizable to Product

60×20mm is the cross-section specification of the enclosure, and the product length can be cut according to the actual equipment dimensions. The specific machinable length is confirmed according to material, surface treatment, and product requirements.

06 | Efficient Heat Dissipation Performance

Aluminum alloy has excellent thermal conductivity. Combined with the 60mm wide-body design, it can effectively help internal components dissipate heat and extend equipment service life.

07 | Metal Enclosure Combines Structure and Appearance

Aluminum alloy is lightweight and has good structural performance, while retaining a natural metal texture. Through surface treatments such as brushing, sandblasting, and anodizing, different appearance effects can be obtained, giving electronic equipment a more professional product appearance.

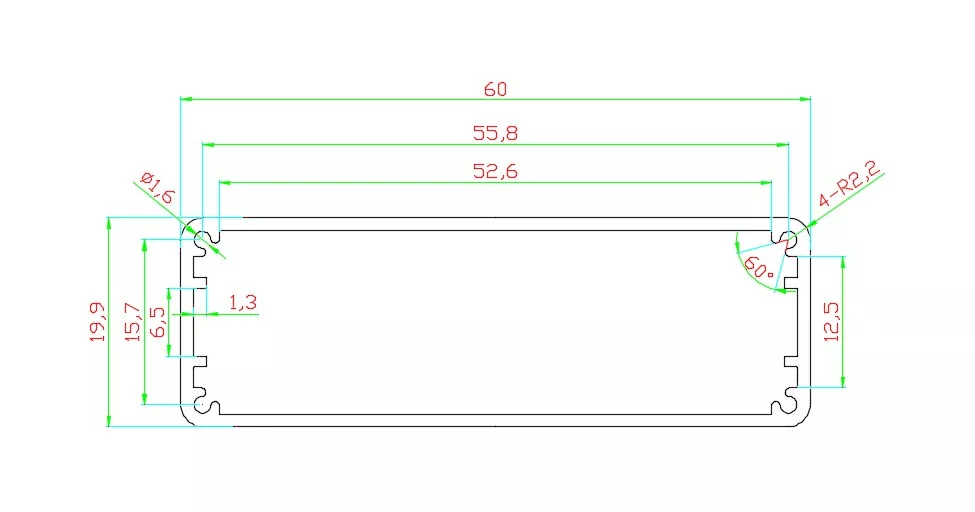

Technical Specifications

Note: Specific material grades, wall thickness, length ranges, dimensional tolerances, and surface treatment colors shall be subject to actual product drawings and order requirements.

What Products Is the 60×20mm Aluminum Enclosure Suitable For?

60×20mm GPS Tracking and Communication Aluminum Housing belongs to the wide-body slim aluminum enclosure category — the 60mm width accommodates larger PCBs and more side-by-side function modules; the 20mm height maintains a slim appearance while providing ample internal space. This specification is widely used in GPS positioning, automotive electronics, communications, instruments and meters, industrial control, power electronics, and other industries.

1. GPS/GPRS Modules and Positioning Tracking Equipment

60×20mm is an ideal packaging solution for GPS/GPRS modules and positioning tracking equipment:

• GPS/GPRS module enclosures
• Vehicle GPS trackers/vehicle terminals
• Asset positioning and tracking devices
• Automotive motor trackers
• Outdoor positioning modules
• IoT positioning terminals

Why is 60×20mm suitable for GPS trackers? GPS tracking devices need a wider PCB layout to accommodate GPS modules, communication modules, antennas, and batteries. The 60mm width provides ample mounting space, and the 20mm thickness is suitable for hiding inside vehicles or equipment. Products such as GPS vehicle terminals and automotive GPS positioning have high standards for heat dissipation and enclosure surface, which the aluminum alloy enclosure exactly meets.

2. Communication Modules and Wireless Equipment

• Communication modules
• Wireless platforms
• Signal conversion modules
• Signal booster enclosures
• Wireless platform terminals
• Data transmission modules
• Video servers
• Routers, wireless receivers
• Optical transceiver enclosures

The 60mm width is wider than common specifications, accommodating more antenna interfaces and communication interfaces placed side by side.

3. Instruments, Meters, and Measuring Equipment

• Instrument and meter enclosures
• Data acquisition instruments
• Signal generator enclosures
• Testing equipment
• Precision measuring instruments

The aluminum alloy enclosure provides good protection for instruments and meters, reducing the impact of unnecessary external environmental factors and thereby extending their service life.

4. Shielding Boxes and Anti-Interference Applications

The 60×20mm aluminum enclosure can serve as a good electromagnetic shielding solution:

• Electronic shielding boxes
• Anti-interference device enclosures
• High-frequency module shielding
• Precision circuit protection boxes

The aluminum alloy material itself has good electromagnetic shielding performance, effectively preventing electromagnetic interference.

5. Power Modules

• Vehicle power supply enclosures
• Inverter enclosures
• Rectifier aluminum housings
• DC-DC converter modules
• Switching power supply modules

6. Industrial Control and Automation Modules

• Industrial controllers
• Programmable logic controller (PLC) modules
• Motion control modules
• I/O expansion modules
• Automation control equipment

7. Medical Equipment

• Medical equipment enclosures
• Testing modules
• Monitoring equipment modules
• Portable medical instruments

8. Public Address and Audio Equipment

• Public address system equipment
• Amplifier circuits
• Audio equipment

What Can Be Customized for the 60×20mm Aluminum Enclosure?

Product Selection Guide

If Your PCB Width Is Close to 60mm

60×20mm is an ideal choice — the 60mm width provides more ample PCB routing space and more side-by-side interface layout, and is wider than the common 52-58mm specifications.

If Your Device Is a GPS/GPRS Module or Positioning Tracker

60×20mm is a classic size specification for GPS vehicle terminals and positioning tracking equipment. The 60mm width accommodates GPS modules, communication modules, and batteries, and the 20mm thickness is suitable for concealed in-vehicle installation.

If Your Device Contains Medium-Height Components

The 20mm height can accommodate electrolytic capacitors (16-18mm), small transformers, relays, and medium-height components, suitable for electronic equipment requiring a certain internal vertical space.

If Your Device Needs a Slim Appearance

The 20mm height maintains a slim appearance while providing ample internal space, balancing aesthetics and functional completeness.

If You Need Compatibility with Multiple Interfaces

The 60mm width supports side-by-side layout of multiple interfaces such as RJ45, aviation plugs, BNC, USB, and SMA antenna interfaces, suitable for communication and measurement equipment requiring rich interfaces.

If Your Device Needs Good Heat Dissipation

The aluminum alloy enclosure has excellent thermal conductivity. Combined with the 60mm wide-body design, it can effectively help internal components dissipate heat.

If PCB Lengths Differ

The profile can be cut according to product length, and the same cross-section specification can adapt to products of different lengths.

Workshop Show

FAQ

1. What products is the 60×20mm aluminum enclosure suitable for?

60×20mm belongs to the wide-body slim aluminum enclosure category. Core applications include GPS/GPRS modules, vehicle terminals, positioning tracking devices, communication modules, signal boosters, instruments and meters, shielding boxes, video servers, wireless platforms, inverter enclosures, etc. The 60mm width provides ample PCB layout space, and the 20mm height accommodates medium-height components while maintaining a slim appearance.

2. Is 60×20mm the length of the enclosure?

No. 60×20mm refers to the cross-section size of the enclosure (width × height). The product length can be cut according to actual equipment and PCB length.

3. Can the length of the 60×20mm aluminum enclosure be customized?

Yes. The length of the aluminum extrusion enclosure can be cut according to product requirements. The specific length needs to be confirmed in combination with material, surface treatment, and product structure.

4. Can the 20mm height accommodate electrolytic capacitors?

Yes. Common electrolytic capacitors are usually 16-18mm in height, and the 20mm internal height can fully accommodate them. Specific confirmation is needed according to your component dimensions.

5. What is the difference between 60mm width and 52-58mm?

60mm is wider than the common 52-58mm specifications, accommodating larger PCBs or more side-by-side interface layouts, especially suitable for equipment requiring wider PCBs or multi-channel input/output interfaces, such as GPS modules and communication modules.

6. Is 60×20mm suitable for GPS vehicle terminals?

Very suitable. GPS vehicle terminals need a wider PCB layout to accommodate positioning modules and communication modules. The 60mm width provides ample space, the 20mm thickness is suitable for concealed in-vehicle installation, and the aluminum alloy enclosure meets heat dissipation requirements.

7. Can heat dissipation holes be made on the aluminum enclosure?

Yes. Boyuan Hardware can machine heat dissipation slots, ventilation holes, and other heat dissipation structures according to customer drawings to help equipment dissipate heat.

8. Can SMA antenna interfaces be machined?

CNC machining can be performed on the corresponding interface positions according to customer drawings. The 60mm width can accommodate side-by-side layout of multiple interfaces. Whether it is specifically suitable for machining needs to be confirmed according to interface dimensions and enclosure structure.

9. Can a PCB be installed?

Yes. The 60×20mm GPS Tracking and Communication Aluminum Housing is standard-equipped with internal circuit board card slots, and the PCB can be directly inserted and fixed without additional screws. Corresponding mounting structures can also be designed according to PCB dimensions and mounting method.

10. Can end plates be customized?

Yes. The dimensions, hole positions, and structure of the end plates can be machined according to product requirements.
