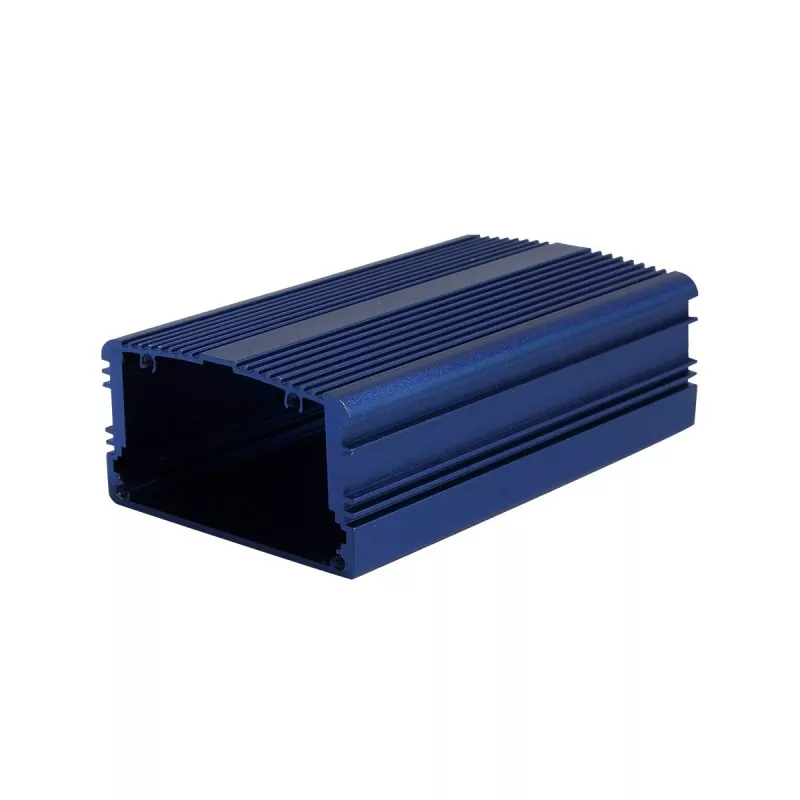

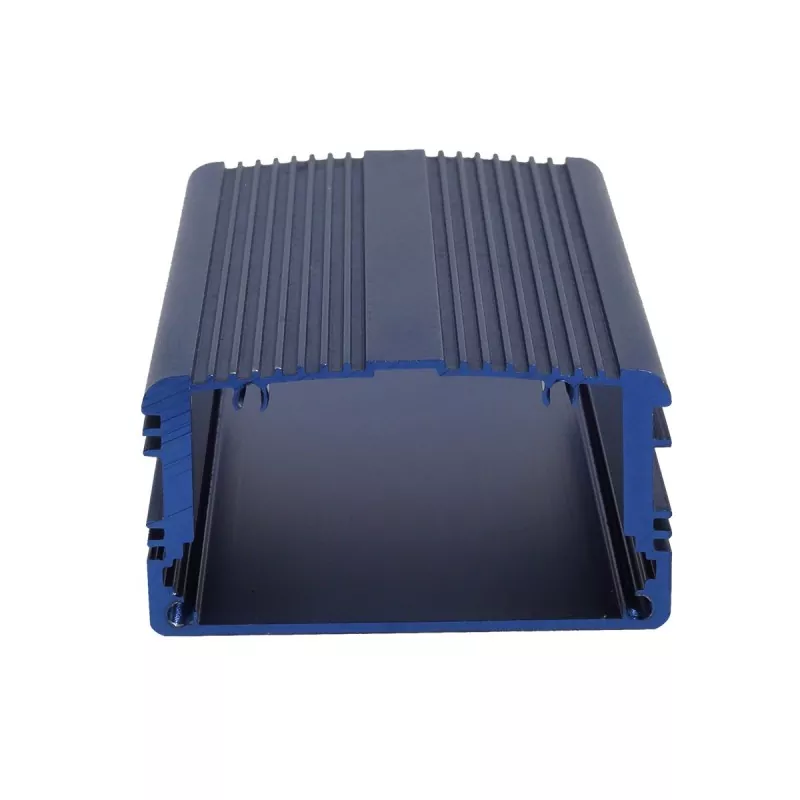

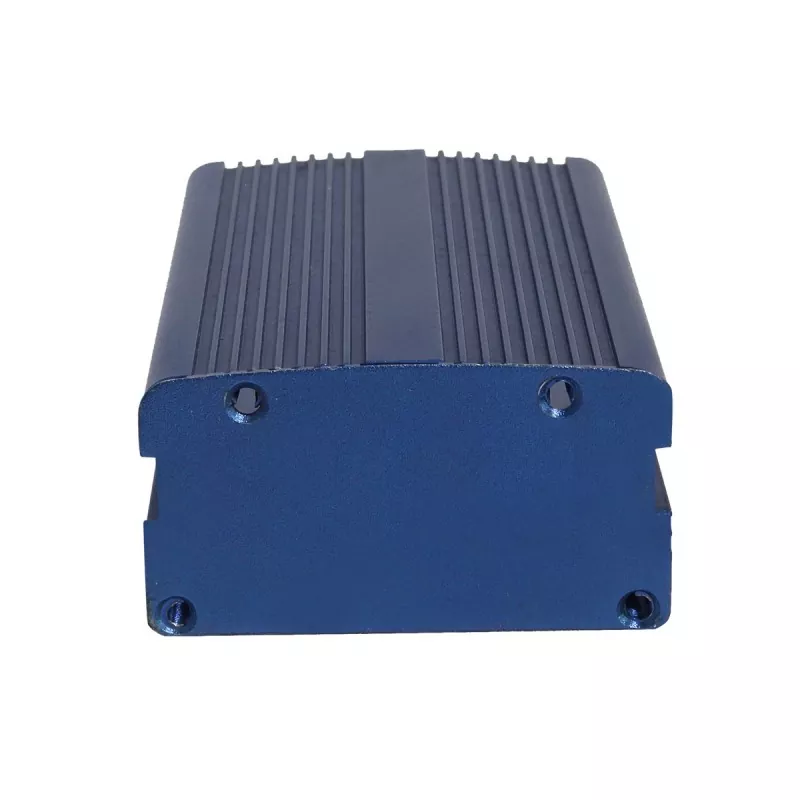

60×33mm Aluminum Industrial Control Box Housing

The 60mm width provides ample PCB layout space, capable of accommodating larger-sized circuit boards and multiple interfaces arranged side by side; the 33mm height offers sufficient internal vertical space, capable of accommodating higher components (such as electrolytic capacitors with a height of about 30mm, small transformers, relays, medium heat sinks, etc.), supporting more complex circuit system integration.

The 60×33mm Aluminum Industrial Control Box Housing is particularly suitable for use in instruments and meters, power communication equipment, subway engineering equipment, medical equipment, public broadcasting systems, shielding boxes, vehicle power supply enclosures, video servers, wireless platforms, GPS/GPRS modules, inverter enclosures, anti-interferenceer enclosures, CPU heat sink shells, power modules, industrial control equipment, and other medium-sized electronic devices with high requirements for internal space.

Product Advantages

01 | 60×33mm Wide Body, Medium Height Design

The 60mm wide × 33mm high cross-section size provides ample packaging space for mid-sized electronic equipment.

The 60mm width is wider than the common 52-58mm specifications, accommodating larger PCB layouts and supporting more side-by-side function modules and interface design, meeting multi-channel input/output layout requirements; the 33mm height maintains a moderate device thickness while providing ample component mounting space — the 33mm height can accommodate electrolytic capacitors around 30mm in height, small transformers, relays, and medium-height heat sinks, supporting the integration needs of relatively complex circuit systems.

02 | Aluminum Extrusion Structure

The enclosure body is formed by aluminum alloy profile extrusion. The cross-section size of the aluminum extrusion enclosure is fixed, while the length can be cut according to actual product requirements. Therefore, the same specification enclosure can adapt to PCBs and electronic modules of different lengths. This structure is especially suitable for electronic products requiring series development.

03 | Suitable for PCB Mounting

The aluminum extrusion electronic enclosure can be designed with corresponding mounting slots or support structures according to the internal structure, for installing PCBs and other electronic components. The interior is standard-equipped with circuit board card slots, and the PCB can be directly inserted and fixed without additional screws.

04 | CNC Custom Machining Support

The standard profile is only the starting point. Boyuan Hardware can perform CNC machining on the 60×33mm aluminum enclosure according to customer drawings, including:

• Interface openings (USB, RJ45, aviation plugs, BNC interfaces, power interfaces, SMA antenna interfaces, etc.)
• Screw holes and positioning holes
• Threaded holes and counterbore holes
• Heat dissipation slots and ventilation holes
• Screen window openings
• Button holes and switch holes
• Mounting holes and wall-mounting holes
• Grooves and steps
• Chamfering
• Other custom structures

05 | Length Customizable to Product

60×33mm is the cross-section specification of the enclosure, and the product length can be cut according to the actual equipment dimensions. The specific machinable length is confirmed according to material, surface treatment, and product requirements.

06 | Efficient Heat Dissipation Performance

Aluminum alloy has excellent thermal conductivity (thermal conductivity approximately 200W/(m·K)). Combined with the 60mm wide-body design and large enclosure area, it can effectively help internal power devices dissipate heat. For equipment with large heat generation such as power modules and inverters, the aluminum enclosure itself is an efficient heat sink.

07 | Excellent Electromagnetic Shielding Performance

The 60×33mm aluminum enclosure can serve as a good electromagnetic shielding solution. The aluminum alloy material itself has good electromagnetic shielding performance, and combined with the ample 33mm internal space, it can effectively prevent electromagnetic interference, suitable for packaging protection of precision circuits and high-frequency modules.

08 | Metal Enclosure Combines Structure and Appearance

Aluminum alloy is lightweight and has good structural performance, while retaining a natural metal texture. Through surface treatments such as brushing, sandblasting, and anodizing, different appearance effects can be obtained, giving electronic equipment a more professional product appearance.

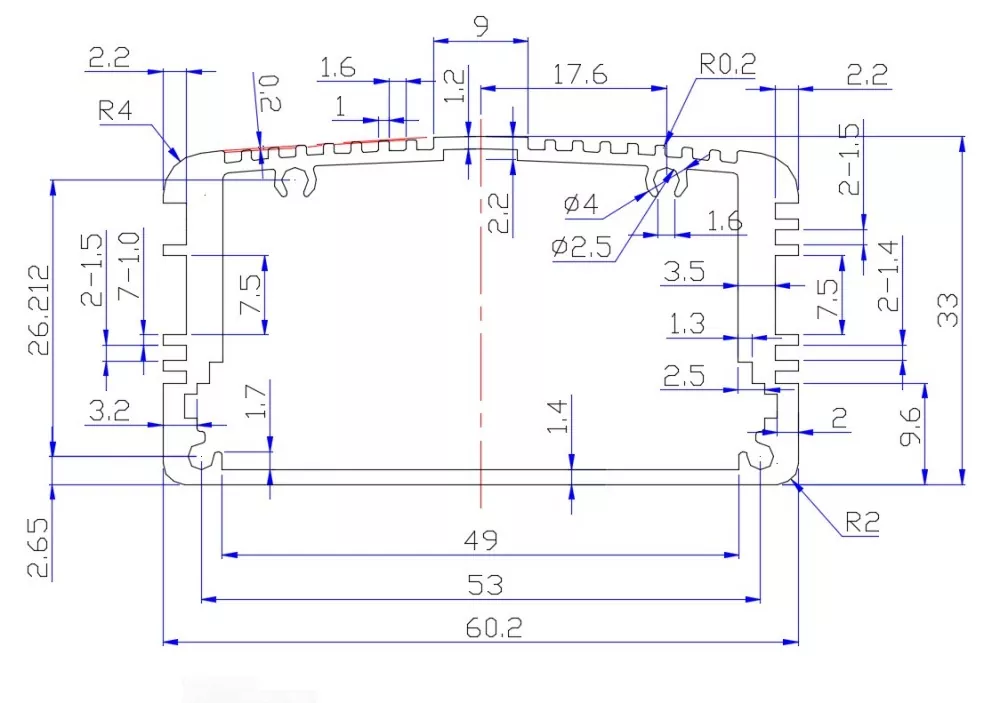

Technical Specifications

Note: Specific material grades, wall thickness, length ranges, dimensional tolerances, and surface treatment colors shall be subject to actual product drawings and order requirements.

What Products Is the 60×33mm Aluminum Enclosure Suitable For?

60×33mm belongs to the wide-body medium-height aluminum enclosure category — the 60mm width accommodates larger PCBs and more side-by-side function modules; the 33mm height provides ample internal vertical space for taller components and medium heat sinks. This specification is widely used in instruments and meters, power communications, subway engineering, medical equipment, public address systems, and other industries.

1. Instruments, Meters, and Measuring Equipment

60×33mm is an ideal packaging solution for instrument and meter products:

• Instrument and meter enclosures
• Data acquisition instruments
• Signal generator enclosures
• Power analyzers
• Testing equipment
• Precision measuring instruments
• Electronic testing equipment

Why is 60×33mm suitable for instruments and meters? Instruments and meters usually need a wider PCB layout to accommodate signal processing circuits and multiple interfaces. The 60mm width provides ample mounting space, and the 33mm height can accommodate transformers, relays, and medium-height components. The aluminum alloy enclosure provides good protection for instruments and meters, reducing the impact of unnecessary external environmental factors and thereby extending their service life.

2. Power Communication Equipment

• Power communication modules
• Subway engineering communication equipment
• Signal conversion modules
• Communication base station equipment
• Data transmission modules
• Video servers

Why is 60×33mm suitable for power communication? Power communication equipment needs a wider PCB layout to accommodate multiple communication interfaces and processing circuits. The 60mm width supports multiple interfaces side by side, and the 33mm height can accommodate stacked installation of power modules and communication modules.

3. GPS/GPRS Modules and Positioning Tracking Equipment

• GPS/GPRS module enclosures
• Vehicle GPS trackers
• Asset positioning and tracking devices
• Outdoor positioning modules
• Wireless platform terminals

Why is 60×33mm suitable for GPS modules? GPS tracking devices need a wider PCB layout to accommodate GPS modules, communication modules, antennas, and batteries. The 60mm width provides ample mounting space, and the 33mm height can accommodate higher-capacity batteries or more complex circuits.

4. Power Modules

• Switching power supply modules
• Vehicle power supply enclosures
• Inverter enclosures
• Rectifier aluminum housings
• DC-DC converter modules
• Communication power supplies
• AC/DC power supplies, regulated power supplies

Why is 60×33mm suitable for power modules? Power modules usually need to accommodate components such as electrolytic capacitors (heights can reach 30mm), small transformers, and heat sinks. The 33mm height provides ample mounting space, and the 60mm width can accommodate wide PCB layouts.

5. Shielding Boxes and Anti-Interference Applications

The 60×33mm aluminum enclosure can serve as an excellent electromagnetic shielding solution:

• Electronic shielding boxes
• Anti-interference device enclosures
• High-frequency module shielding
• Precision circuit protection boxes
• CPU heat sink housings

6. Medical Equipment

• Medical equipment enclosures
• Testing modules
• Monitoring equipment modules
• Portable medical instruments

7. Industrial Control and Automation Modules

• Industrial controllers
• Programmable logic controller (PLC) modules
• Motion control modules
• Motor drive modules
• I/O expansion modules
• Automation control equipment

8. Public Address and Audio Equipment

• Public address system equipment
• Amplifier circuits
• Audio equipment

Customization Item

Surface Treatment

Anodizing

Anodizing is one of the commonly used surface treatment methods for aluminum enclosures. It can change the appearance and surface properties of the aluminum surface and achieve different color effects.

Sandblasting

Sandblasting can form a uniform matte texture on the aluminum surface, suitable for industrial electronic equipment and instrument enclosures.

Brushing

Brushing can form regular metal textures, allowing the product to maintain an obvious aluminum alloy metal texture.

Laser Engraving

The following can be machined on the surface of the 60×33mm aluminum enclosure:

• Logo
• Product model
• Interface identification
• Product number
• Text and patterns

Silkscreen Printing

Suitable for machining multi-color logos, text, and function identification.

Why Choose Boyuan Hardware?

For electronic equipment manufacturers, what matters more is whether the supplier can complete supporting machining such as length, end plates, interface openings, screen windows, mounting holes, heat dissipation structures, PCB structures, surface treatment, and logos according to the actual product.

Boyuan Hardware has focused on the aluminum enclosure and aluminum chassis industry for over 20 years, with approximately 10,000 square meters of production factory space, providing custom aluminum enclosure machining.

From the standard 60×33mm aluminum profile to the CNC-machined finished electronic enclosure, we can machine according to customer product requirements.

If you are looking for a 60×33mm Aluminum Industrial Control Box Housing, you are welcome to send your PCB dimensions, product drawings, or 3D models. We can confirm the specification, machining method, and customization plan according to your product structure.

Workshop Show

FAQ

1. What products is the 60×33mm aluminum enclosure suitable for?

60×33mm belongs to the wide-body medium-height aluminum enclosure category. Core applications include instruments and meters, power communication equipment, subway engineering equipment, medical equipment, public address systems, shielding boxes, vehicle power supply enclosures, video servers, wireless platforms, GPS/GPRS modules, inverter enclosures, anti-interference device enclosures, CPU heat sink housings, power modules, industrial control equipment, etc. The 60mm width provides ample PCB layout space, and the 33mm height accommodates taller components.

2. Is 60×33mm the length of the enclosure?

No. 60×33mm refers to the cross-section size of the enclosure (width × height). The product length can be cut according to actual equipment and PCB length.

3. Can the length of the 60×33mm aluminum enclosure be customized?

Yes. The length of the aluminum extrusion enclosure can be cut according to product requirements. The specific length needs to be confirmed in combination with material, surface treatment, and product structure.

4. Can the 33mm height accommodate electrolytic capacitors?

Yes. Common electrolytic capacitors are usually 25-30mm in height, and the 33mm internal height can fully accommodate them. Specific confirmation is needed according to your component dimensions.

5. Can the 33mm height accommodate a transformer?

Yes. The 33mm height can accommodate small transformers, relays, and other taller components. Specific confirmation is needed according to your transformer dimensions.

6. Is 60×33mm suitable for shielding boxes?

Very suitable. The aluminum alloy material itself has good electromagnetic shielding performance, and the ample 33mm internal space can accommodate complex circuit systems, effectively preventing electromagnetic interference.

7. Is 60×33mm suitable for power modules?

Very suitable. Power modules usually need to accommodate components such as electrolytic capacitors and transformers. The 33mm height provides ample mounting space, and the 60mm width can accommodate wide PCB layouts.

8. Can heat dissipation holes be made on the aluminum enclosure?

Yes. Boyuan Hardware can machine heat dissipation slots, ventilation holes, and other heat dissipation structures according to customer drawings to help equipment dissipate heat.

9. Can SMA antenna interfaces be machined?

CNC machining can be performed on the corresponding interface positions according to customer drawings. The 60mm width can accommodate side-by-side layout of multiple interfaces. Whether it is specifically suitable for machining needs to be confirmed according to interface dimensions and enclosure structure.

10. Can different colors be selected?

Yes. The aluminum enclosure can achieve different appearance effects through processes such as anodizing, and the color can be arbitrarily customized according to customer requirements.
