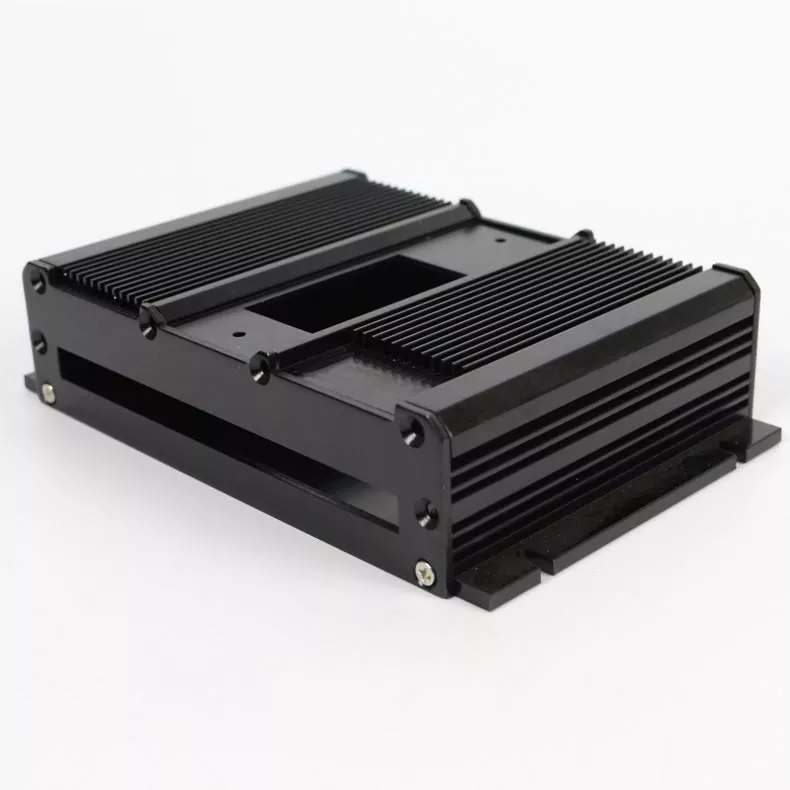

CNC Machined Aluminum Housing with Grooves and Cutouts
Boyuan Hardware manufactures custom CNC Machined Aluminum Housing with Grooves and Cutouts according to customer drawings and specified structural requirements. Our 3-axis CNC milling process can produce a range of accessible machined features, subject to the part geometry, workpiece setup, and tool accessibility.These components can be used as individual structural parts or incorporated into larger electronic and industrial assemblies.
Some aluminum components require more than a simple flat surface or rectangular profile. Depending on the design, they may include grooves, recessed areas, stepped surfaces, mounting holes, and customized cutouts.
Machining Features
Grooves and Slots
Grooves and slots can be incorporated into a component for design-defined purposes, such as locating, fitting, or accommodating other parts.
Recessed Areas
Machined recesses can create space for components or provide specific structural features where required by the design.
Stepped Surfaces
Different surface heights and machined levels can be produced when the geometry is accessible to the selected machining setup.
Customized Holes and Cutouts
Hole patterns and cutouts can be machined according to the approved drawing and applicable machining limitations.
Custom Manufacturing Options
|
Feature |
Project Requirements |
|
Part geometry |
Custom outlines and profiles |
|
Grooves and slots |
Width, depth, position, and length specified by drawing |
|
Recessed areas |
Dimensions and depth confirmed during drawing review |
|
Holes |
Hole diameter, position, and thread specification |
|
Stepped surfaces |
Height differences and machining accessibility |
|
Material |
Aluminum alloy grade agreed for the project |
|
Surface finish |
Confirmed according to the required application |
Workshop Show
Applications
Electronic equipment components
Customized mounting and locating parts
Industrial equipment structures
Mechanical assemblies
Components with integrated mounting features
Why Drawing Review Matters
Grooves, recessed areas, and complex-looking profiles must be evaluated against the capabilities of the available machining process. For 3-axis CNC machining, tool access, workpiece orientation, clamping, and the number of setups can affect manufacturability, cost, and lead time.
Providing a complete drawing helps us review the proposed geometry before production and identify features that may require design adjustments.
Frequently Asked Questions
Can you machine grooves and recessed features in aluminum parts?
Yes, provided the features are accessible and suitable for the available 3-axis CNC process. Feasibility is confirmed during drawing review.
Can you manufacture parts with different surface heights?
Stepped surfaces can be evaluated according to the drawing, tool accessibility, and workpiece setup.
Do you accept custom CNC Machined Aluminum Housing with Grooves and Cutouts designs?
Yes. Customers can submit drawings or other dimensional references for manufacturing review.
Request a Quote
Send us your part drawing and highlight any critical grooves, recesses, hole positions, or mating surfaces. Boyuan Hardware will review the requirements and discuss manufacturing feasibility.
