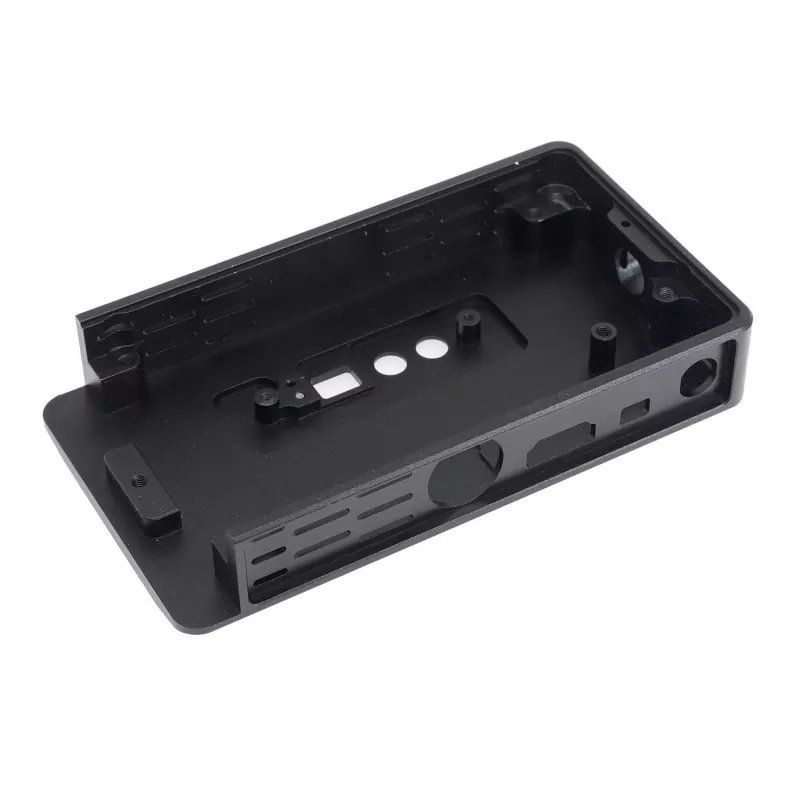

CNC Machined Aluminum Base Plate and Cover

Base plates and covers often serve different purposes within an equipment assembly. A base plate may support internal components or provide mounting points, while a cover can close an opening and help protect internal parts. Their dimensions and hole positions must match the surrounding structure to support proper assembly.

Product Features

Drawing-Based Dimensions

Plate length, width, thickness, and hole positions are defined according to the project drawing.

Customized Mounting Holes

Mounting holes and other specified features can be machined to accommodate fasteners and assembly requirements.

Structural Compatibility

Dimensions and hole layouts can be reviewed in relation to mating components, helping customers specify the features needed for assembly.

Flexible Component Design

The design may include rectangular outlines, customized contours, holes, slots, and recessed areas, subject to machining feasibility.

Customization Options

Workshop Show

Typical Applications

Electronic enclosure base plates

Equipment mounting plates

Removable housing covers

Industrial equipment components

Mechanical assembly plates

How to Order Custom Aluminum Plates and Covers

Step 1: Submit Your Drawing

Provide a 2D drawing, 3D CAD file, or dimensioned sketch showing the overall dimensions and hole positions.

Step 2: Confirm Critical Dimensions

Identify important thicknesses, hole locations, mating surfaces, and any dimensions that affect assembly.

Step 3: Review Manufacturing Requirements

We review the geometry, material, machining operations, and requested surface finish before quotation.

Step 4: Proceed with Production

Manufacturing follows the confirmed drawing and agreed order specifications.

Frequently Asked Questions

Can you manufacture a replacement aluminum cover from an existing sample?

A sample can be used as a reference for reviewing the design. The final manufacturing requirements should be confirmed through dimensional information and an agreed drawing.

Can base plates include threaded holes?

Threaded holes can be machined where the material thickness, thread specification, and geometry are suitable.

Can you produce plates in different thicknesses?

Thickness requirements can be reviewed according to the drawing, material availability, and machining feasibility.

Request a Quote

Contact Boyuan Hardware with your drawings, dimensions, material requirements, and order quantity to discuss custom CNC Machined Aluminum Base Plate and Cover.
