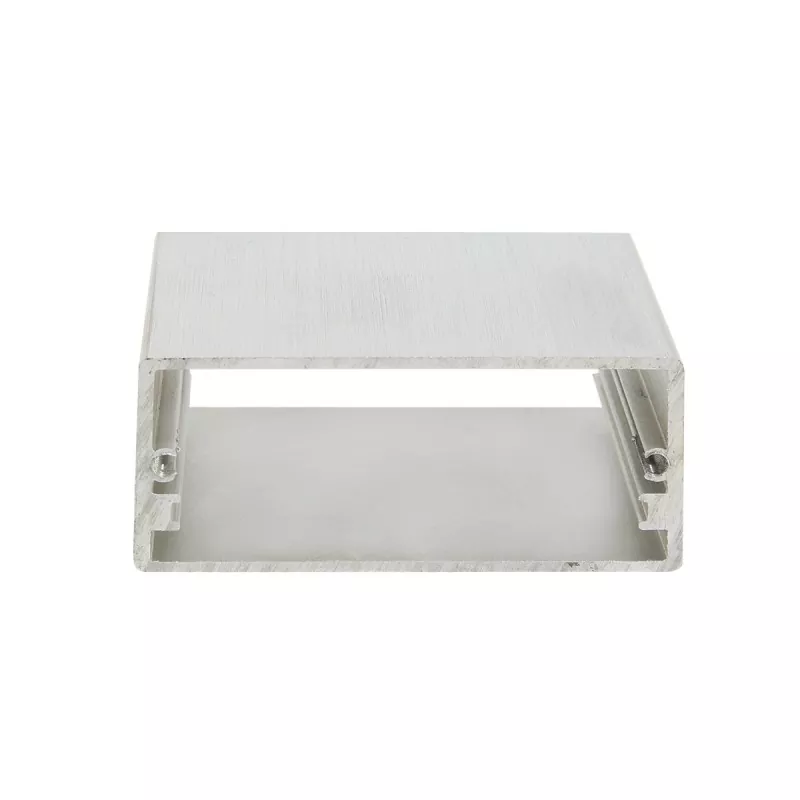

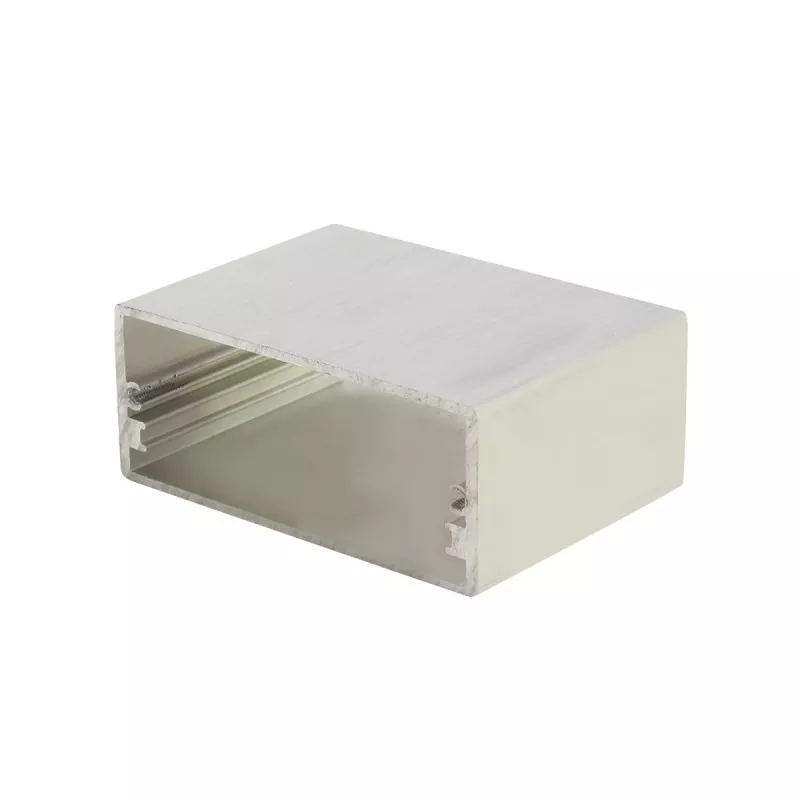

58×24mm GPS Module Aluminum Enclosure

58×24mm GPS Module Aluminum Enclosure — a wide, slim extruded aluminum housing that adds a little extra width for positioning and measuring electronics. The 58mm width exceeds common 52-57mm profiles, allowing larger PCBs, bigger displays, and more side-by-side function modules, while the 24mm height keeps a slim appearance and clears small transformers, electrolytic capacitors (typically 18-22mm), relays, and medium-height components.

The profile body is cut to the required length and completed with end plates, CNC machining, and related processes. Internal card slots allow the PCB to slide in and be fixed without extra screws, offering assembly speed that other enclosure types cannot match.

Compared with plastic housings, the aluminum body provides better structural strength and a metal finish, and supports CNC-machined interfaces, mounting holes, threaded holes, SMA antenna holes, and heat dissipation slots.

Boyuan Hardware, with over 20 years of experience and a ~10,000㎡ factory, provides cutting, CNC, drilling, tapping, surface treatment, laser engraving, silkscreen, inspection, and assembly.

Product Features

01 | 58×24mm Wide and Slim Design

The 58mm wide × 24mm high cross-section size provides ample packaging space for electronic equipment.

The 58mm width is wider than the common 52-57mm specifications, accommodating larger PCB layouts and supporting more side-by-side function modules and interface design, meeting multi-channel input/output layout requirements; the 24mm height maintains a slim device appearance while providing ample component mounting space, accommodating small transformers, electrolytic capacitors (typically 18-22mm in height), relays, and medium-height components, supporting the integration needs of relatively complex circuit systems.

02 | Aluminum Extrusion Structure

The enclosure body is formed by aluminum alloy profile extrusion. The cross-section size of the aluminum extrusion enclosure is fixed, while the length can be cut according to actual product requirements. Therefore, the same specification enclosure can adapt to PCBs and electronic modules of different lengths. This structure is especially suitable for electronic products requiring series development.

03 | Suitable for PCB Mounting

The aluminum extrusion electronic enclosure can be designed with corresponding mounting slots or support structures according to the internal structure, for installing PCBs and other electronic components. The interior is standard-equipped with circuit board card slots, and the PCB can be directly inserted and fixed without additional screws.

04 | CNC Custom Machining Support

The standard profile is only the starting point. Boyuan Hardware can perform CNC machining on the 58×24mm aluminum enclosure according to customer drawings, including:

• Interface openings (USB, RJ45, aviation plugs, BNC interfaces, power interfaces, SMA antenna interfaces, etc.)
• Screw holes and positioning holes
• Threaded holes and counterbore holes
• Heat dissipation slots and ventilation holes
• Screen window openings
• Button holes and switch holes
• Mounting holes and wall-mounting holes
• Grooves and steps
• Chamfering
• Other custom structures

05 | Length Customizable to Product

58×24mm is the cross-section specification of the enclosure, and the product length can be cut according to the actual equipment dimensions. The specific machinable length is confirmed according to material, surface treatment, and product requirements.

06 | Efficient Heat Dissipation Performance

Aluminum alloy has excellent thermal conductivity. Combined with the 58mm wide-body design, it can effectively help internal components dissipate heat and extend equipment service life.

07 | Metal Enclosure Combines Structure and Appearance

Aluminum alloy is lightweight and has good structural performance, while retaining a natural metal texture. Through surface treatments such as brushing, sandblasting, and anodizing, different appearance effects can be obtained, giving electronic equipment a more professional product appearance.

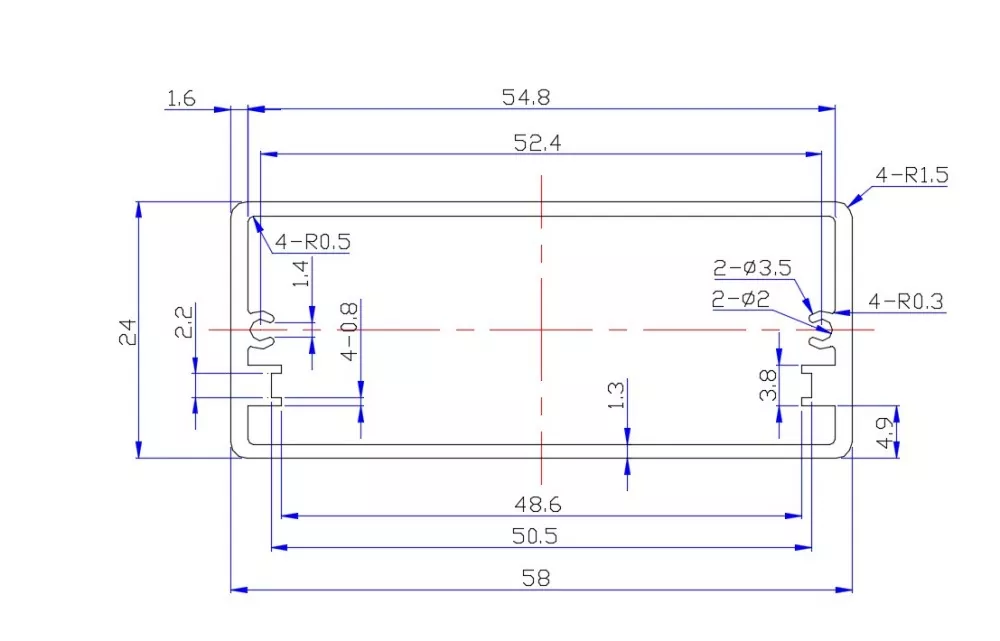

Technical Specifications

Note: Specific material grades, wall thickness, length ranges, dimensional tolerances, and surface treatment colors shall be subject to actual product drawings and order requirements.

What Products Is the 58×24mm Aluminum Enclosure Suitable For?

58×24mm GPS Module Aluminum Enclosure belongs to the wide-body slim aluminum enclosure category — the 58mm width accommodates larger PCBs and more side-by-side function modules; the 24mm height maintains a slim appearance while providing ample internal space. This specification is widely used in instruments and meters, power communications, subway engineering, medical equipment, public address systems, and other industries.

1. Instruments, Meters, and Measuring Equipment

58×24mm is an ideal packaging solution for instrument and meter products:

• Digital levels/digital inclinometers
• Instrument and meter enclosures
• Data acquisition instruments
• Signal generator enclosures
• Power analyzers
• Testing equipment
• Precision measuring instruments

Why is 58×24mm suitable for instruments and meters? 58×24mm is a classic size specification for measuring instruments such as digital levels and inclinometers — the 58mm width is wider than 57mm, accommodating larger LCD screens and more complex measurement circuit boards. The 24mm height provides a comfortable grip thickness, and the aluminum alloy enclosure offers excellent impact and torsion resistance, ensuring measurement accuracy.

2. GPS/GPRS and Positioning Tracking Equipment

• GPS/GPRS module enclosures
• Vehicle GPS trackers
• Asset positioning and tracking devices
• Outdoor positioning modules
• Small electronic junction boxes

Why is 58×24mm suitable for GPS trackers? GPS tracking devices need a wider PCB layout to accommodate GPS modules, communication modules, antennas, and batteries. The 58mm width provides more ample mounting space, and the 24mm thickness is suitable for hiding inside vehicles or equipment.

3. Communication Modules and Wireless Equipment

• Communication modules
• Wireless platforms
• Signal conversion modules
• Signal booster enclosures
• Wireless platform terminals
• Data transmission modules
• Video servers
• Routers, wireless receivers

4. Shielding Boxes and Anti-Interference Applications

The 58×24mm aluminum enclosure can serve as a good electromagnetic shielding solution:

• Electronic shielding boxes
• Anti-interference device enclosures
• High-frequency module shielding
• Precision circuit protection boxes

The aluminum alloy material itself has good electromagnetic shielding performance, effectively preventing electromagnetic interference.

5. Power Modules

• Vehicle power supply enclosures
• Inverter enclosures
• Rectifier aluminum housings
• DC-DC converter modules
• Switching power supply modules

6. Industrial Control and Automation Modules

• Industrial controllers
• Programmable logic controller (PLC) modules
• Motion control modules
• I/O expansion modules
• Automation control equipment

7. Medical Equipment

• Medical equipment enclosures
• Testing modules
• Monitoring equipment modules
• Portable medical instruments

8. Public Address and Audio Equipment

• Public address system equipment
• Amplifier circuits
• Audio equipment

What Can Be Customized for the 58×24mm Aluminum Enclosure?

Surface Treatment

Anodizing

Anodizing is one of the commonly used surface treatment methods for aluminum enclosures. It can change the appearance and surface properties of the aluminum surface and achieve different color effects.

Sandblasting

Sandblasting can form a uniform matte texture on the aluminum surface, suitable for industrial electronic equipment and instrument enclosures.

Brushing

Brushing can form regular metal textures, allowing the product to maintain an obvious aluminum alloy metal texture.

Laser Engraving

The following can be machined on the surface of the 58×24mm GPS Module Aluminum Enclosure:

• Logo
• Product model
• Interface identification
• Product number
• Text and patterns

Silkscreen Printing

Suitable for machining multi-color logos, text, and function identification.

Professional Aluminum Enclosure Custom Machining

We not only produce standard aluminum enclosures, but can also customize according to customer product structures.

Customers only need to provide:

2D drawings / 3D models / physical samples / product dimensions

We can then perform machining evaluation according to actual product requirements.

CNC Machining Meets Non-Standard Requirements

For products that cannot be directly satisfied by the 58×24mm standard profile, customization can be achieved through subsequent CNC machining.

For example:

Interface openings + screen windows + mounting holes + threaded holes + heat dissipation slots + grooves + steps + logo

All can be machined according to customer drawings.

Product Selection Guide

If Your PCB Width Is Close to 58mm

58×24mm is an ideal choice — the 58mm width provides more ample PCB routing space and more side-by-side interface layout, and is wider than the common 52-57mm specifications.

If Your Device Is an Instrument or Meter Product

58×24mm is a classic specification for digital levels, inclinometers, testing instruments, and other measuring equipment. The 58mm width accommodates larger displays and more complex circuit boards, and the 24mm thickness provides a comfortable grip.

If Your Device Contains Medium-Height Components

The 24mm height can accommodate small transformers, electrolytic capacitors (18-22mm), relays, and medium-height components, suitable for electronic equipment requiring a certain internal vertical space.

If Your Device Needs a Slim Appearance

The 24mm height maintains a slim appearance while providing ample internal space, balancing aesthetics and functional completeness.

If You Need Compatibility with Multiple Interfaces

The 58mm width supports side-by-side layout of multiple interfaces such as RJ45, aviation plugs, BNC, USB, and SMA antenna interfaces, suitable for communication and measurement equipment requiring rich interfaces.

If Your Device Needs Good Heat Dissipation

The aluminum alloy enclosure has excellent thermal conductivity. Combined with the 58mm wide-body design, it can effectively help internal components dissipate heat.

If PCB Lengths Differ

The profile can be cut according to product length, and the same cross-section specification can adapt to products of different lengths.

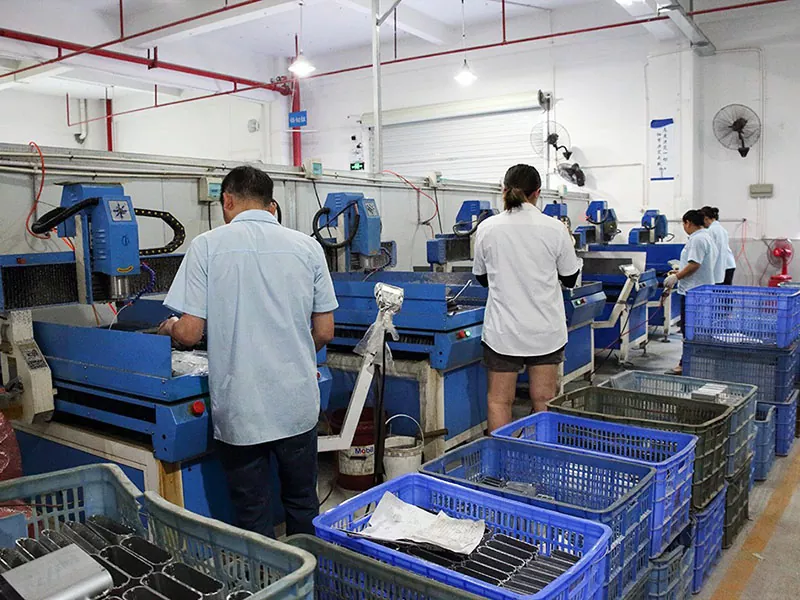

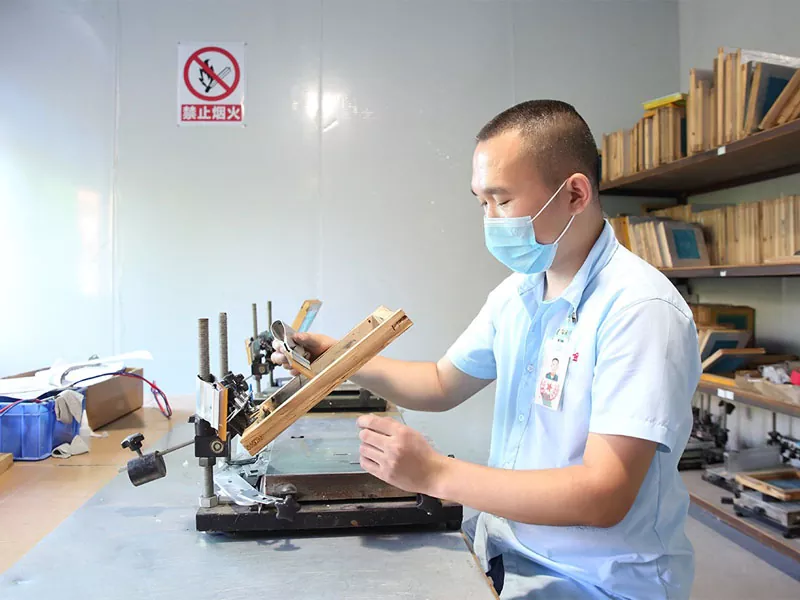

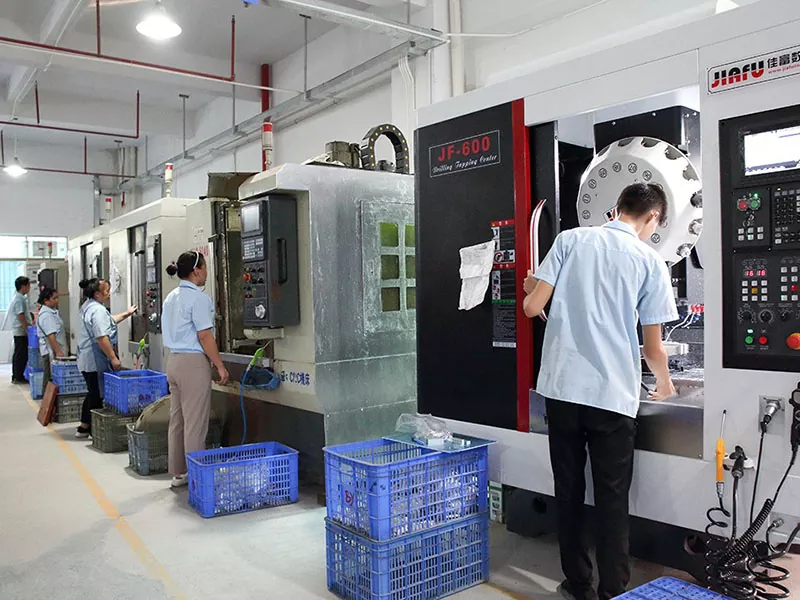

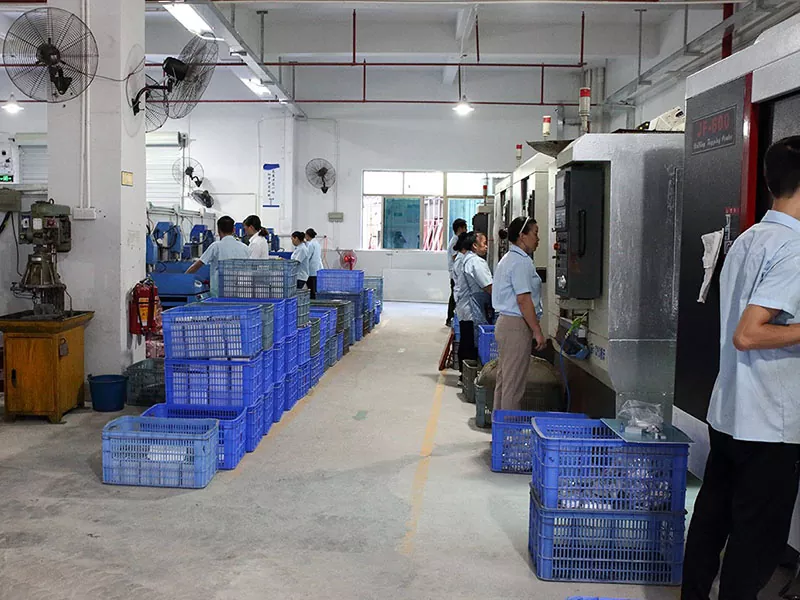

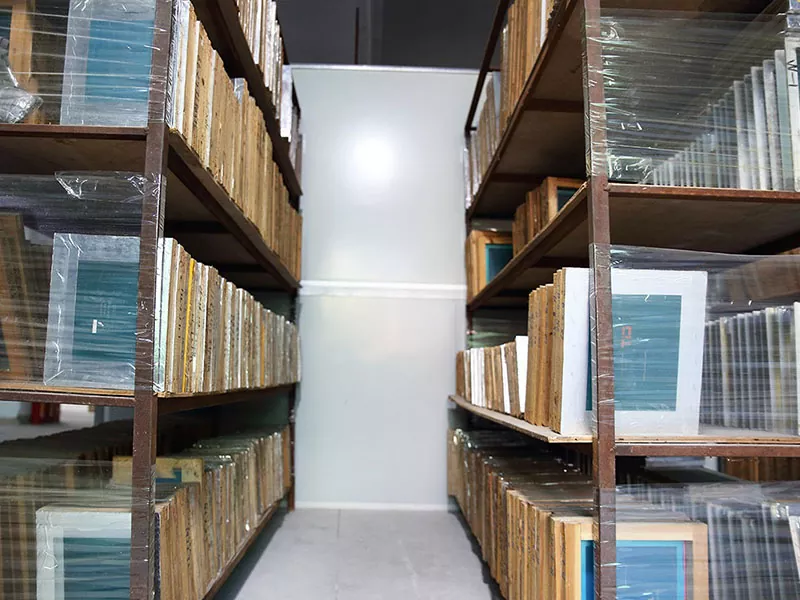

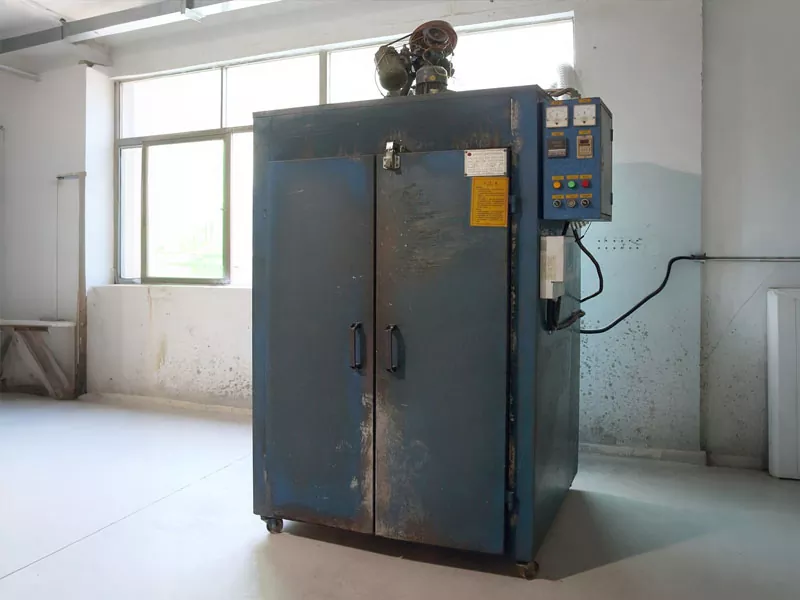

Workshop Show

FAQ

1. What products is the 58×24mm aluminum enclosure suitable for?

58×24mm belongs to the wide-body slim aluminum enclosure category. Core applications include instruments and meters (digital levels, inclinometers), GPS/GPRS modules, communication modules, shielding boxes, vehicle power supply enclosures, video servers, wireless platforms, inverter enclosures, medical equipment, public address systems, etc. The 58mm width provides more ample PCB layout space, and the 24mm height accommodates medium-height components while maintaining a slim appearance.

2. Is 58×24mm the length of the enclosure?

No. 58×24mm refers to the cross-section size of the enclosure (width × height). The product length can be cut according to actual equipment and PCB length.

3. Can the length of the 58×24mm aluminum enclosure be customized?

Yes. The length of the aluminum extrusion enclosure can be cut according to product requirements. The specific length needs to be confirmed in combination with material, surface treatment, and product structure.

4. Can the 24mm height accommodate electrolytic capacitors?

Yes. Common electrolytic capacitors are usually 18-22mm in height, and the 24mm internal height can fully accommodate them. Specific confirmation is needed according to your component dimensions.

5. What is the difference between 58mm width and 57mm?

58mm is 1mm wider than 57mm. Although the difference is small, it provides more ample space for PCB routing and makes it easier to accommodate larger displays or more interfaces side by side.

6. Is 58×24mm suitable for digital levels?

Very suitable. Measuring instruments such as digital levels and inclinometers commonly use 58×24mm aluminum alloy enclosures. The 58mm width accommodates large screens, and the 24mm thickness provides a comfortable grip.

7. Can heat dissipation holes be made on the aluminum enclosure?

Yes. Boyuan Hardware can machine heat dissipation slots, ventilation holes, and other heat dissipation structures according to customer drawings to help equipment dissipate heat.

8. Can SMA antenna interfaces be machined?

CNC machining can be performed on the corresponding interface positions according to customer drawings. The 58mm width can accommodate side-by-side layout of multiple interfaces. Whether it is specifically suitable for machining needs to be confirmed according to interface dimensions and enclosure structure.

9. Can a PCB be installed?

Yes. The 58×24mm aluminum enclosure is standard-equipped with internal circuit board card slots, and the PCB can be directly inserted and fixed without additional screws. Corresponding mounting structures can also be designed according to PCB dimensions and mounting method.

10. What if 58×24mm is not suitable for my PCB?

You can send us the PCB dimensions, product structure, or 3D model. Boyuan Hardware can help confirm whether the 58×24mm specification is suitable according to actual dimensions, and can also choose other aluminum profile specifications or perform custom machining.
