55×15mm Ultra Slim Aluminum Electronic Enclosure for Smart Devices

Internal card slots allow the PCB to slide in and be fixed without extra screws, accepting standard 1.6mm boards and SMD components. Compared with plastic housings, the 55×15mm Ultra Slim Aluminum Electronic Enclosure for Smart Devices body provides better structural strength and a metal finish, and supports CNC-machined interfaces, indicator holes, button holes, and heat dissipation structures. Boyuan Hardware, with over 20 years of experience and a ~10,000㎡ factory, provides cutting, CNC, drilling, tapping, surface treatment, laser engraving, silkscreen, inspection, and assembly.

Product Advantages

01 | 55×15mm Ultra-Wide and Ultra-Thin Design

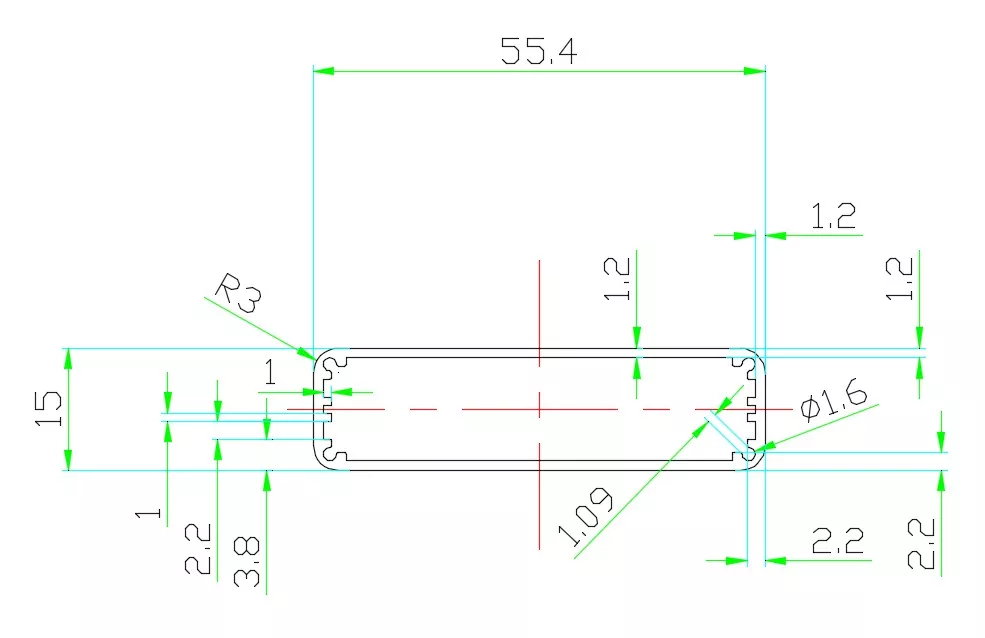

The 55mm wide × 15mm high cross-section size provides an extremely slim packaging solution for ultra-thin smart devices.

The 55mm width is wider than the common 52mm specification, accommodating larger PCB layouts and supporting more side-by-side function modules and interface design; the 15mm ultra-thin height is one of the thinnest specifications currently available in the aluminum enclosure industry, giving devices a card-like ultra-thin profile and greatly enhancing product quality perception and technological appeal. The 15mm thickness can accommodate standard 1.6mm thick PCBs and surface-mount components, making it the best choice for LED strip controllers and other ultra-thin devices.

02 | Aluminum Extrusion Structure

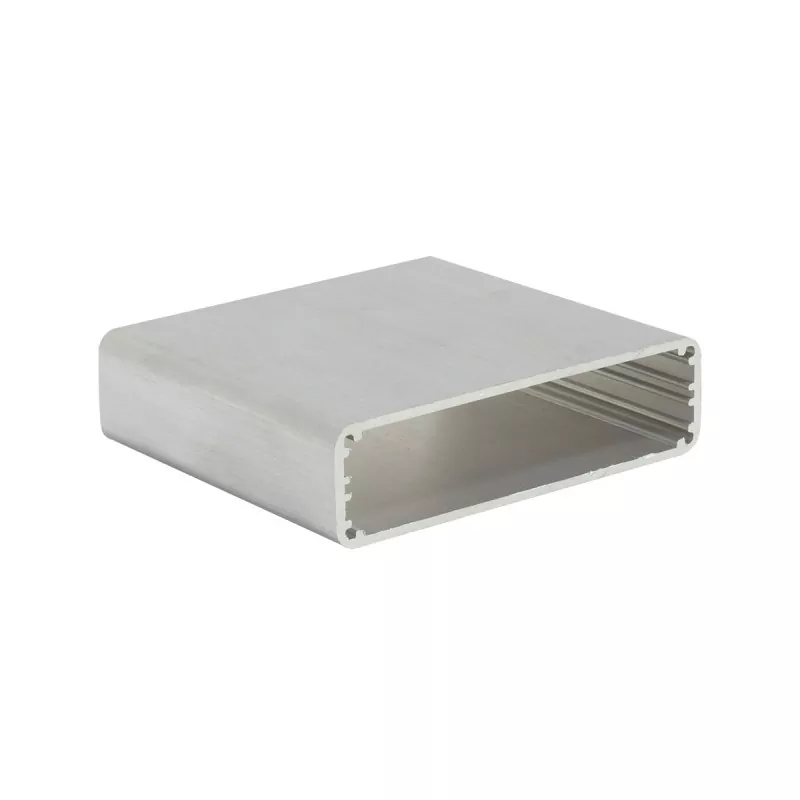

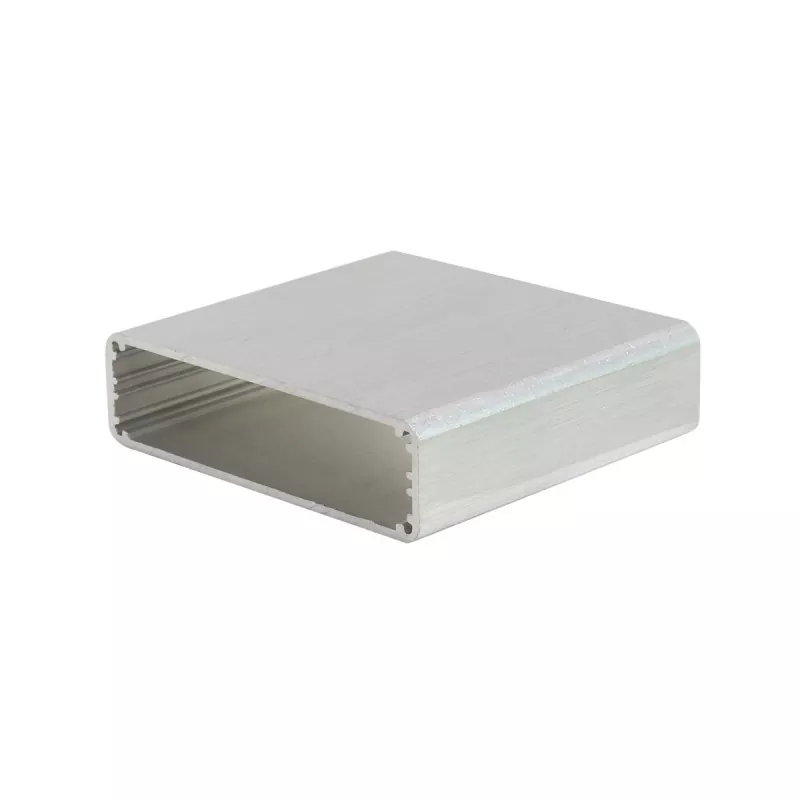

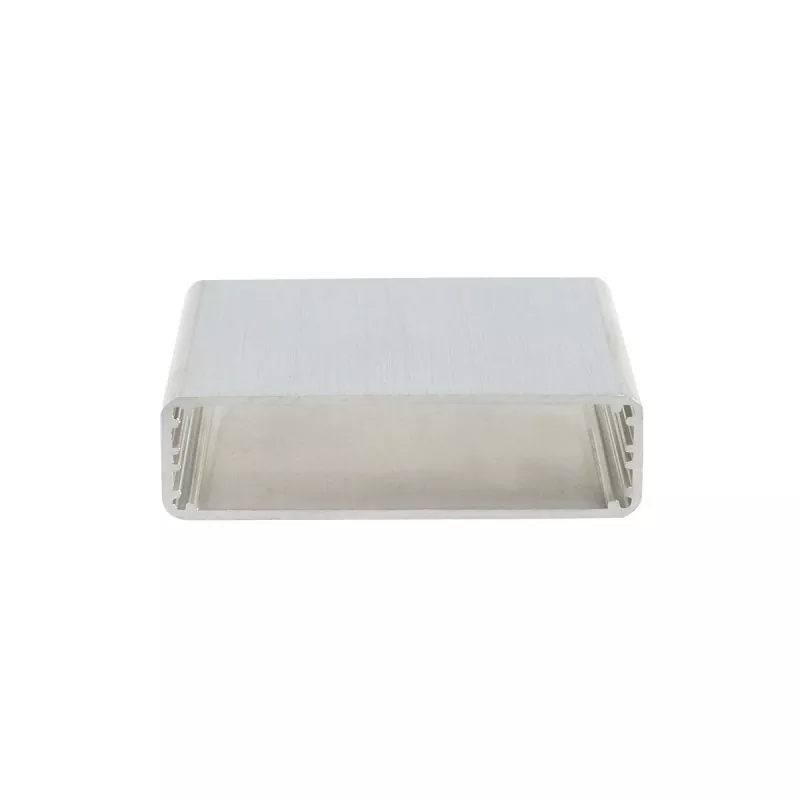

The enclosure body is formed by aluminum alloy profile extrusion. The cross-section size of the aluminum extrusion enclosure is fixed, while the length can be cut according to actual product requirements. Therefore, the same specification enclosure can adapt to PCBs and electronic modules of different lengths.

03 | Suitable for PCB Mounting

The aluminum extrusion electronic enclosure can be designed with corresponding mounting slots or support structures according to the internal structure, for installing PCBs and other electronic components. The interior is standard-equipped with circuit board card slots, and the PCB can be directly inserted and fixed without additional screws. The 15mm height is precisely designed to accommodate standard 1.6mm thick PCBs and surface-mount components.

04 | CNC Custom Machining Support

The standard profile is only the starting point. Boyuan Hardware can perform CNC machining on the 55×15mm aluminum enclosure according to customer drawings, including:

• Interface openings (USB, Type-C, DC power interfaces, terminal blocks, etc.)
• Indicator light holes
• Button holes
• Mounting holes and positioning holes
• Threaded holes and counterbore holes
• Heat dissipation structures
• Grooves and steps
• Chamfering
• Other custom structures

05 | Length Customizable to Product

55×15mm is the cross-section specification of the enclosure, and the product length can be cut according to the actual equipment dimensions. The specific machinable length is confirmed according to material, surface treatment, and product requirements.

06 | Efficient Heat Dissipation Performance

Aluminum alloy has excellent thermal conductivity. Combined with the 55mm wide-body design and the large heat dissipation surface of the aluminum enclosure itself, it can effectively help internal power devices dissipate heat and extend the service life of LED controllers and other equipment.

07 | Metal Enclosure Combines Structure and Appearance

Aluminum alloy is lightweight and has good structural performance, while retaining a natural metal texture. Through surface treatments such as brushing, sandblasting, and anodizing, different appearance effects can be obtained, giving ultra-thin devices a more refined product texture.

08 | Suitable for Embedded Installation

The 15mm ultra-thin thickness makes the 55×15mm aluminum enclosure very suitable for embedded installation in narrow spaces — such as inside LED strip channels, inside walls, inside furniture, and inside equipment — without occupying extra space.

Technical Specifications

Note: Specific material grades, wall thickness, length ranges, dimensional tolerances, and surface treatment colors shall be subject to actual product drawings and order requirements.

What Products Is the 55×15mm Aluminum Enclosure Suitable For?

55×15mm belongs to the ultra-wide and ultra-thin aluminum enclosure category — the 55mm width accommodates larger PCBs and more side-by-side function modules, and the 15mm height achieves a card-like ultra-thin profile. The 15mm ultra-thin height is the core feature of this specification, making it one of the thinnest aluminum enclosures in the industry, especially suitable for ultra-thin smart devices and LED control products with extreme thickness requirements.

1. LED Strip Controllers and Dimmers

55×15mm is an ideal packaging solution for LED strip controllers:

• LED strip controllers
• RGB/RGBW dimming controllers
• DMX512 decoders
• SPI signal amplifiers
• 0-10V/PWM dimmers
• Smart lighting control modules
• Single-color/color LED controllers
• Constant voltage/constant current LED driver modules

Why is 55×15mm suitable for LED strip controllers? LED strip controllers usually need to be installed side by side with the LED channel or embedded inside the strip channel, where installation space is extremely limited. The 15mm ultra-thin height allows the controller to be easily placed inside a standard LED channel (commonly 12-16mm in height) or attached to the back of the strip, without protruding from the surface. The 55mm width can accommodate a wider PCB, supporting side-by-side layout of multiple output interfaces (RGBW four channels). The aluminum alloy enclosure helps dissipate heat from the driver chip and MOS transistors, extending controller service life. Compared with the 52×13mm specification, 55×15mm is wider and slightly taller, accommodating slightly taller components with broader applicability.

2. Electronic Price Tags and Electronic Labels

• Supermarket electronic price tags
• Warehouse electronic labels
• Smart shelf labels
• ESL electronic shelf labels
• Retail display labels

Why is 55×15mm suitable for electronic price tags? Electronic price tags need to be attached to shelf edges, with extremely high requirements for thickness. The 15mm ultra-thin thickness makes the price tag occupy almost no shelf space, and the 55mm width can accommodate larger electronic paper screens (such as 4.2 inches/5.8 inches, etc.) and control circuit board.

3. Wireless Chargers

• Desktop wireless chargers
• Car wireless charging modules
• Embedded wireless charging pads
• Multi-device wireless charging panels

The 55mm width can accommodate a standard wireless charging coil (approximately 45-50mm in diameter), and the 15mm thickness enables an ultra-thin charger design.

4. Ultra-Thin Sensor Modules

• Ultra-thin photoelectric sensors
• Infrared human body sensing modules
• Illuminance sensors
• Temperature and humidity sensors
• Ultrasonic distance measurement modules
• PM2.5 detection modules

5. Bluetooth Beacons and Positioning Tags

• Bluetooth beacons
• Indoor positioning tags
• Asset tracking tags
• Anti-lost devices

The 15mm ultra-thin thickness allows the tag to be easily attached to walls, shelves, and equipment surfaces.

6. Smart Sockets and Smart Switch Panels

• Smart socket enclosures
• WiFi smart switch modules
• Zigbee/Z-wave control modules
• Smart home control panels

The 55mm width matches standard panel dimensions, and the 15mm ultra-thin thickness allows the panel to achieve an extremely slim profile.

7. LED Display Control Cards

• Small LED control cards
• Display receiving cards
• Asynchronous control cards

8. Ultra-Thin Power Supplies and Adapters

• Ultra-thin power adapters
• LED driver power supplies
• Fast charging module enclosures
• DC-DC conversion modules

9. Smart Home Control Modules

• Smart curtain control modules
• Smart lighting control modules
• Environmental monitoring terminals

What Can Be Customized for the 55×15mm Aluminum Enclosure?

Surface Treatment

Anodizing

Anodizing is one of the commonly used surface treatment methods for aluminum enclosures. It can change the appearance and surface properties of the aluminum surface and achieve different color effects.

Sandblasting

Sandblasting can form a uniform matte texture on the aluminum surface, suitable for industrial equipment and smart home enclosures.

Brushing

Brushing can form regular metal textures, allowing the product to maintain an obvious aluminum alloy metal texture.

Laser Engraving

The following can be machined on the surface of the 55×15mm aluminum enclosure:

• Logo
• Product model
• Interface identification
• Product number
• Text and patterns

Silkscreen Printing

Suitable for machining multi-color logos, text, and function identification.

Professional Aluminum Enclosure Custom Machining

We not only produce standard aluminum enclosures, but can also customize according to customer product structures.

Customers only need to provide:

2D drawings / 3D models / physical samples / product dimensions

We can then perform machining evaluation according to actual product requirements.

CNC Machining Meets Non-Standard Requirements

For products that cannot be directly satisfied by the 55×15mm standard profile, customization can be achieved through subsequent CNC machining.

For example:

Interface openings + indicator light holes + button holes + heat dissipation slots + mounting holes + grooves + steps + logo

All can be machined according to customer drawings.

Product Selection Guide

If Your Device Has Extreme Thickness Requirements

15mm is one of the thinnest specifications currently available in the aluminum enclosure industry, suitable for LED strip controllers, electronic price tags, wireless chargers, and other products with extremely high thickness requirements.

If Your PCB Width Is Close to 55mm

55×15mm is an ideal choice — the 55mm width provides ample PCB routing space and function module layout, and is 3mm wider than the 52mm specification, accommodating larger PCBs.

If You Need to Install Inside an LED Channel

The 15mm ultra-thin height matches standard LED channel dimensions (commonly 12-16mm in height), allowing the controller to fit perfectly inside the LED channel without protruding from the surface.

If You Need Embedded Installation

The 15mm ultra-thin thickness is suitable for installation in narrow spaces — inside LED channels, inside walls, inside furniture, inside equipment, etc. — without occupying extra space.

If You Need to Attach to a Shelf or Wall

The 15mm ultra-thin thickness allows the device to be easily attached to shelf edges and wall surfaces, occupying no space and looking neat and elegant.

If PCB Lengths Differ

The profile can be cut according to product length, and the same cross-section specification can adapt to products of different lengths.

Workshop Show

FAQ

1. What products is the 55×15mm aluminum enclosure suitable for?

55×15mm belongs to the ultra-wide and ultra-thin aluminum enclosure category. Core applications include LED strip controllers, electronic price tags, wireless chargers, Bluetooth beacons, ultra-thin sensors, smart sockets, smart switch panels, display control cards, etc. The 15mm ultra-thin height is one of the thinnest aluminum enclosures in the industry, suitable for ultra-thin smart devices with extreme thickness requirements.

2. Is 55×15mm the length of the enclosure?

No. 55×15mm refers to the cross-section size of the enclosure (width × height). The product length can be cut according to actual equipment and PCB length.

3. Is 55×15mm suitable for LED strip controllers?

Very suitable. The 15mm ultra-thin height can easily fit inside standard LED channels (commonly 12-16mm in height), and the 55mm width can accommodate a wide controller PCB and multiple output interfaces. The aluminum alloy enclosure helps dissipate heat from the driver chip and MOS transistors, making it the ideal packaging solution for LED controllers.

4. Can the length of the 55×15mm aluminum enclosure be customized?

Yes. The length of the aluminum extrusion enclosure can be cut according to product requirements. The specific length needs to be confirmed in combination with material, surface treatment, and product structure.

5. Can the 15mm height accommodate a PCB?

Yes. The 15mm height is precisely designed to accommodate standard 1.6mm thick PCBs and surface-mount components. Specific confirmation is needed according to your PCB thickness and component height.

6. What is the difference between 55mm width and 52mm?

55mm is 3mm wider than the common 52mm specification, accommodating larger PCBs or more side-by-side interface layouts, especially suitable for LED controllers requiring wider PCBs or multiple output channels.

7. Can a Type-C interface hole be made on the aluminum enclosure?

Yes. Boyuan Hardware can precisely machine various interface openings such as Type-C, USB, and DC power interfaces according to customer drawings.

8. Can a logo be made?

Yes. Logo machining methods such as laser engraving or silkscreen printing can be selected according to product requirements.

9. Can different colors be selected?

Yes. The 55×15mm Ultra Slim Aluminum Electronic Enclosure for Smart Devices can achieve different appearance effects through processes such as anodizing, and the color can be arbitrarily customized according to customer requirements.

10. Can samples be made first?

Sample machining can be performed according to project requirements. It is recommended to confirm the sample dimensions, hole positions, assembly, and surface effect before mass production.
