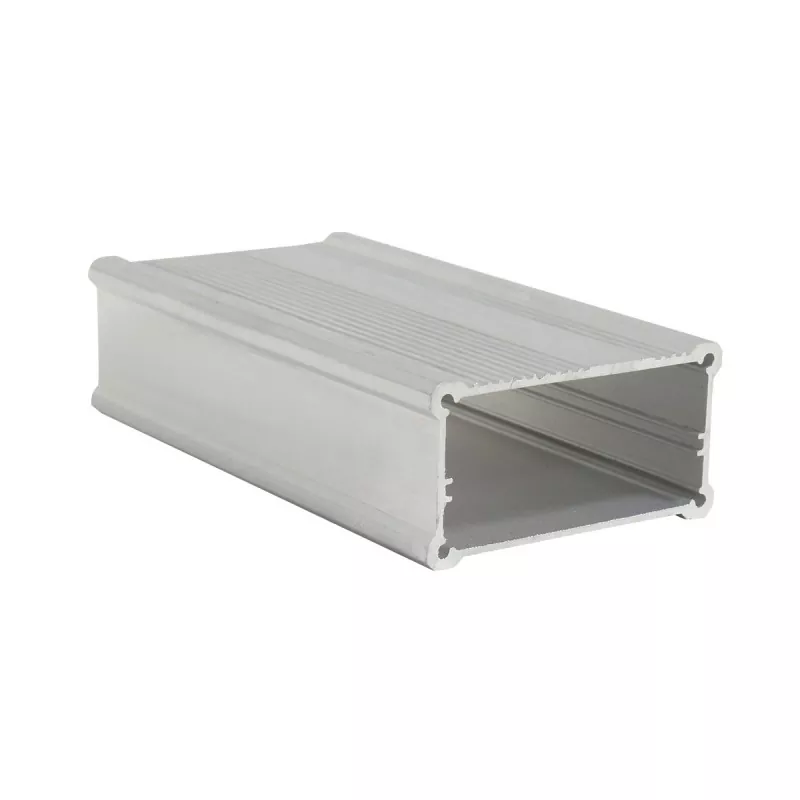

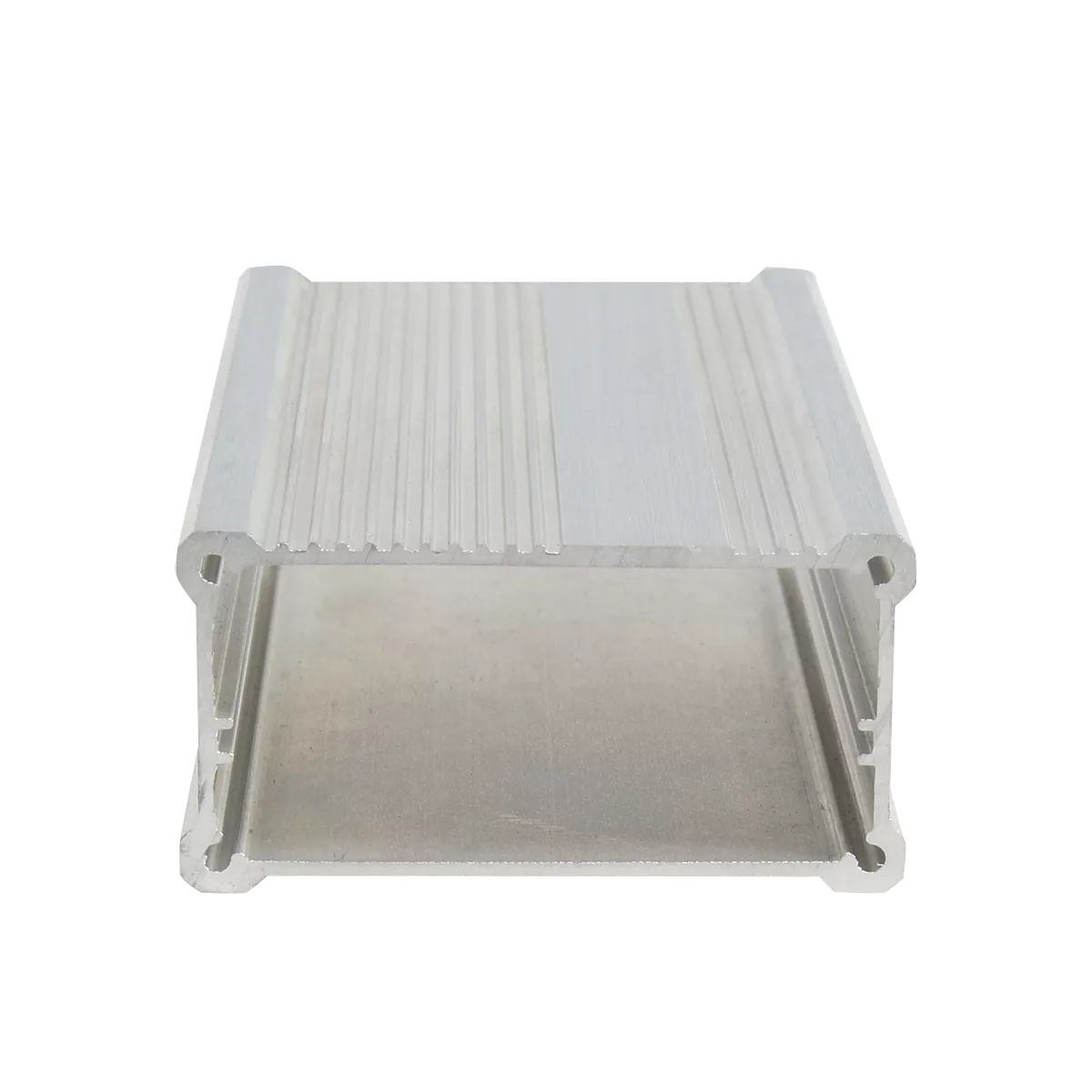

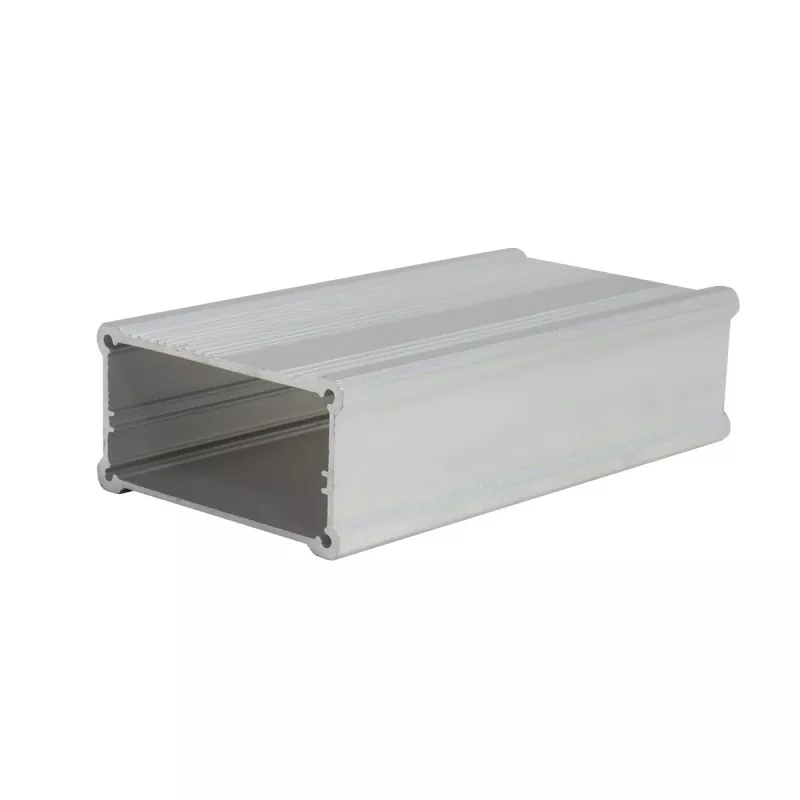

53.4×27.5mm Aluminum Power Supply Control Module Housing

Boyuan 53.4×27.5mm Aluminum Power Supply Control Module Housing is a mid-sized electronic device housing manufactured with an aluminum alloy extrusion structure, with an external cross-section size of 53.4mm (width) × 27.5mm (height), and the length can be customized arbitrarily according to actual equipment requirements.

Compared with plastic boxes, aluminum alloy enclosures have better structural strength and a metal texture, and can achieve custom structures such as interfaces, mounting holes, threaded holes, and slots through CNC machining.

Core Advantages

01 | 53.4×27.5mm Wide Body, Moderate Design

The 53.4mm wide × 27.5mm high cross-section size provides ample internal space for mid-sized electronic equipment.

The 53.4mm width is wider than the common 52mm specification, accommodating wider PCB layouts and more side-by-side interface design, supporting multi-channel input/output interface layouts; the 27.5mm height maintains a moderate device thickness while providing greater component mounting space than slim specifications, accommodating small transformers, electrolytic capacitors (typically 20-25mm in height), relays, and medium-height components, supporting the integration needs of relatively complex circuit systems.

02 | Aluminum Extrusion Structure

The enclosure body is formed by aluminum alloy profile extrusion. The cross-section size of the aluminum extrusion enclosure is fixed, while the length can be cut according to actual product requirements. Therefore, the same specification enclosure can adapt to PCBs and electronic modules of different lengths. This structure is especially suitable for electronic products requiring series development.

03 | Suitable for PCB Mounting

The aluminum extrusion electronic enclosure can be designed with corresponding mounting slots or support structures according to the internal structure, for installing PCBs and other electronic components. The interior is standard-equipped with circuit board card slots, and the PCB can be directly inserted and fixed without additional screws. The 27.5mm height can accommodate power devices with small heat sinks or medium-height components, providing a reliable packaging solution for electronic equipment with slightly higher power.

04 | CNC Custom Machining Support

The standard profile is only the starting point. Boyuan Hardware can perform CNC machining on the 53.4×27.5mm aluminum enclosure according to customer drawings, including:

• Interface openings (USB, RJ45, aviation plugs, BNC interfaces, power interfaces, etc.)
• Screw holes and positioning holes
• Threaded holes and counterbore holes
• Heat dissipation slots and ventilation holes
• Screen window openings
• Button holes and switch holes
• Mounting holes and wall-mounting holes
• Grooves and steps
• Chamfering
• Other custom structures

05 | Length Customizable to Product

53.4×27.5mm is the cross-section specification of the enclosure, and the product length can be cut according to the actual equipment dimensions. The specific machinable length is confirmed according to material, surface treatment, and product requirements.

06 | Efficient Heat Dissipation Performance

Aluminum alloy has excellent thermal conductivity. Combined with the 53.4mm wide-body design and 27.5mm internal space, small heat sinks can be installed or internal air circulation space can be increased, effectively helping internal components dissipate heat and extending equipment service life.

07 | Metal Enclosure Combines Structure and Appearance

Aluminum alloy is lightweight and has good structural performance, while retaining a natural metal texture. Through surface treatments such as brushing, sandblasting, and anodizing, different appearance effects can be obtained, giving electronic equipment a more professional product appearance.

Technical Specifications

Note: Specific material grades, wall thickness, length ranges, dimensional tolerances, and surface treatment colors shall be subject to actual product drawings and order requirements.

What Products Is the 53.4×27.5mm Aluminum Enclosure Suitable For?

53.4×27.5mm Aluminum Power Supply Control Module Housing belongs to the wide-body moderate-space aluminum enclosure category — the 53.4mm width is wider than the common 52mm specification, supporting wider PCBs and more side-by-side interface layouts; the 27.5mm height maintains a moderate device thickness while providing greater internal space than slim specifications. This specification is widely used in instruments, meters, electronics, communications, automation, sensors, smart cards, industrial control, precision machinery, and other industries.

1. Power Modules

The wide-body moderate design of 53.4×27.5mm is very suitable for various power products:

• Switching power supply modules
• Power adapters
• Vehicle power supply enclosures
• Inverter enclosures
• Rectifier aluminum housings
• DC-DC converter modules
• Charger modules
• AC/DC power supplies, regulated power supplies
• Communication power supplies

Why is 53.4×27.5mm suitable for power modules? Power modules usually need to accommodate components such as electrolytic capacitors (typically 20-25mm in height), small transformers, and heat sinks. The 27.5mm height provides ample mounting space, the 53.4mm width can accommodate wide PCB layouts, supporting multi-channel input/output interfaces, and the aluminum alloy material also helps power devices dissipate heat efficiently.

2. Industrial Control and Automation Modules

• Industrial controllers
• Programmable logic controller (PLC) modules
• Motion control modules
• Motor drive modules
• I/O expansion modules
• Automation control equipment
• Industrial control chassis supporting modules

Why is 53.4×27.5mm suitable for industrial control modules? Industrial control modules usually need to accommodate many interfaces and larger-sized control boards. The 53.4mm width can accommodate multiple interfaces side by side, and the 27.5mm height can install power devices with small heat sinks.

3. Communication and Network Modules

Suitable for communication module products:

• Communication modules
• Wireless platforms
• GPS/GPRS enclosures
• Signal conversion modules
• Signal booster enclosures
• Data transmission modules
• Video servers
• Routers, wireless receivers

The 53.4mm width can accommodate more antenna interfaces and communication interface layouts.

4. Measuring Instruments and Testing Equipment

• Instrument and meter enclosures
• Data acquisition instruments
• Signal generator enclosures
• Power analyzers
• Testing equipment
• Precision measuring instruments

Why is 53.4×27.5mm suitable for measuring instruments? Measuring instruments need larger PCB layouts to accommodate signal processing circuits and multiple interfaces. The 53.4mm width can accommodate standard wide PCBs, and the 27.5mm height can accommodate components such as transformers and relays. At the same time, the aluminum alloy enclosure provides good electromagnetic shielding performance.

5. Shielding Boxes and Anti-Interference Applications

The 53.4×27.5mm aluminum enclosure can serve as a good electromagnetic shielding solution:

• Electronic shielding boxes
• Anti-interference device enclosures
• High-frequency module shielding

The aluminum alloy material itself has good electromagnetic shielding performance, effectively preventing electromagnetic interference.

6. Sensors and Smart Devices

• Sensor modules
• Data acquisition terminals
• Smart card devices
• IoT terminals

7. Medical and Testing Equipment

• Medical equipment enclosures
• Testing modules
• Monitoring equipment modules
• Portable medical instruments

8. Public Address and Audio Equipment

• Public address system equipment
• Amplifier circuits
• Audio equipment

What Can Be Customized?

Surface Treatment

Anodizing

Anodizing is one of the commonly used surface treatment methods for aluminum enclosures. It can change the appearance and surface properties of the aluminum surface and achieve different color effects.

Sandblasting

Sandblasting can form a uniform matte texture on the aluminum surface, suitable for industrial electronic equipment and instrument enclosures.

Brushing

Brushing can form regular metal textures, allowing the product to maintain an obvious aluminum alloy metal texture.

Laser Engraving

The following can be machined on the surface of the 53.4×27.5mm aluminum enclosure:

• Logo
• Product model
• Interface identification
• Product number
• Text and patterns

Silkscreen Printing

Suitable for machining multi-color logos, text, and function identification.

Professional Aluminum Enclosure Custom Machining

We not only produce standard aluminum enclosures, but can also customize according to customer product structures.

Customers only need to provide:

2D drawings / 3D models / physical samples / product dimensions

We can then perform machining evaluation according to actual product requirements.

CNC Machining Meets Non-Standard Requirements

For products that cannot be directly satisfied by the 53.4×27.5mm standard profile, customization can be achieved through subsequent CNC machining.

For example:

Interface openings + screen windows + mounting holes + threaded holes + heat dissipation slots + grooves + steps + logo

All can be machined according to customer drawings.

Product Selection Guide

If Your PCB Width Is Close to 53.4mm

53.4×27.5mm is an ideal choice — the 53.4mm width provides more ample PCB routing space and more side-by-side interface layout than the common 52mm specification.

If Your Device Contains Medium-Height Components

The 27.5mm height can accommodate small transformers, electrolytic capacitors (20-25mm), relays, and medium-height components, suitable for electronic equipment requiring a certain internal vertical space.

If Your Device Needs Good Heat Dissipation

The aluminum alloy enclosure has excellent thermal conductivity. Combined with the 53.4mm wide-body design, it can effectively help internal components dissipate heat.

If You Need Compatibility with Multiple Interfaces

The 53.4mm width supports side-by-side layout of multiple interfaces such as RJ45, aviation plugs, BNC, and USB, suitable for mid-sized equipment requiring rich interfaces.

If PCB Lengths Differ

The profile can be cut according to product length, and the same cross-section specification can adapt to products of different lengths.

Workshop Show

FAQ

1. What products is the 53.4×27.5mm aluminum enclosure suitable for?

53.4×27.5mm belongs to the wide-body moderate-space aluminum enclosure category, suitable for power modules, industrial controllers, communication modules, measuring instruments, shielding boxes, signal boosters, vehicle power supply enclosures, video servers, wireless platforms, etc. The 53.4mm width provides ample PCB layout space, and the 27.5mm height can accommodate medium-height components.

2. Is 53.4×27.5mm the length of the enclosure?

No. 53.4×27.5mm refers to the cross-section size of the enclosure (width × height). The product length can be cut according to actual equipment and PCB length.

3. Can the length of the 53.4×27.5mm aluminum enclosure be customized?

Yes. The length of the aluminum extrusion enclosure can be cut according to product requirements. The specific length needs to be confirmed in combination with material, surface treatment, and product structure.

4. Can the 27.5mm height accommodate electrolytic capacitors?

Yes. Common electrolytic capacitors are usually 20-25mm in height, and the 27.5mm internal height can fully accommodate them. Specific confirmation is needed according to your component dimensions.

5. Can heat dissipation holes be made on the aluminum enclosure?

Yes. Boyuan Hardware can machine heat dissipation slots, ventilation holes, and other heat dissipation structures according to customer drawings to help equipment dissipate heat.

6. Can interfaces such as aviation plugs and BNC be machined?

CNC machining can be performed on the corresponding interface positions according to customer drawings. The 53.4mm width can accommodate side-by-side layout of multiple interfaces. Whether it is specifically suitable for machining needs to be confirmed according to interface dimensions and enclosure structure.

Why Choose Boyuan Hardware?

Boyuan Hardware has focused on the aluminum enclosure and aluminum chassis industry for over 20 years, with approximately 10,000 square meters of production factory space, providing custom aluminum enclosure machining.

From the standard 53.4×27.5mm aluminum profile to the CNC-machined finished electronic enclosure, we can machine according to customer product requirements.

If you are looking for a 53.4×27.5mm Aluminum Power Supply Control Module Housing, you are welcome to send your PCB dimensions, product drawings, or 3D models.

We can confirm the specification, machining method, and customization plan according to your product structure.
