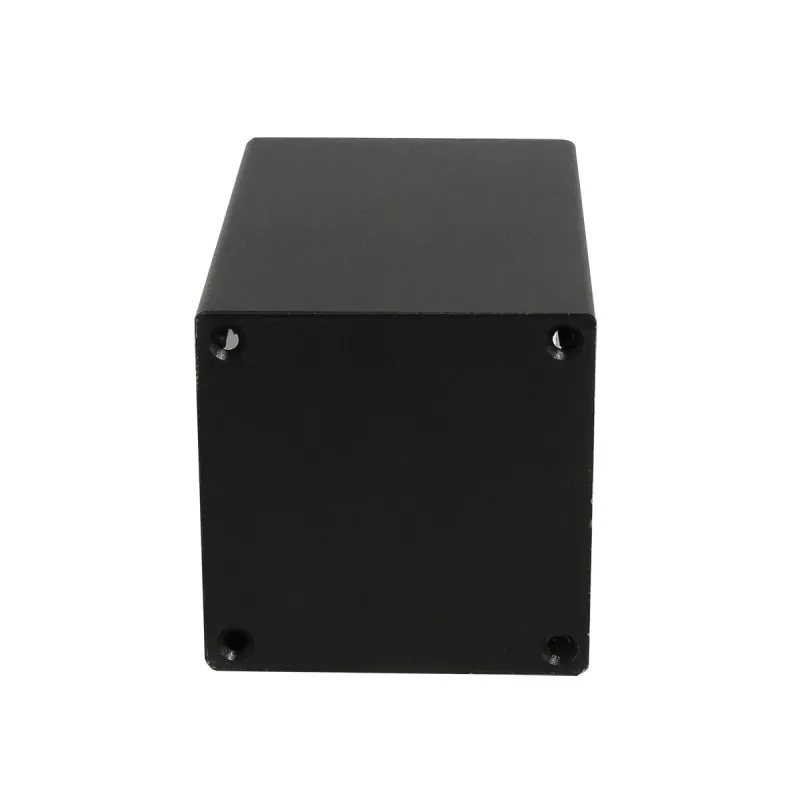

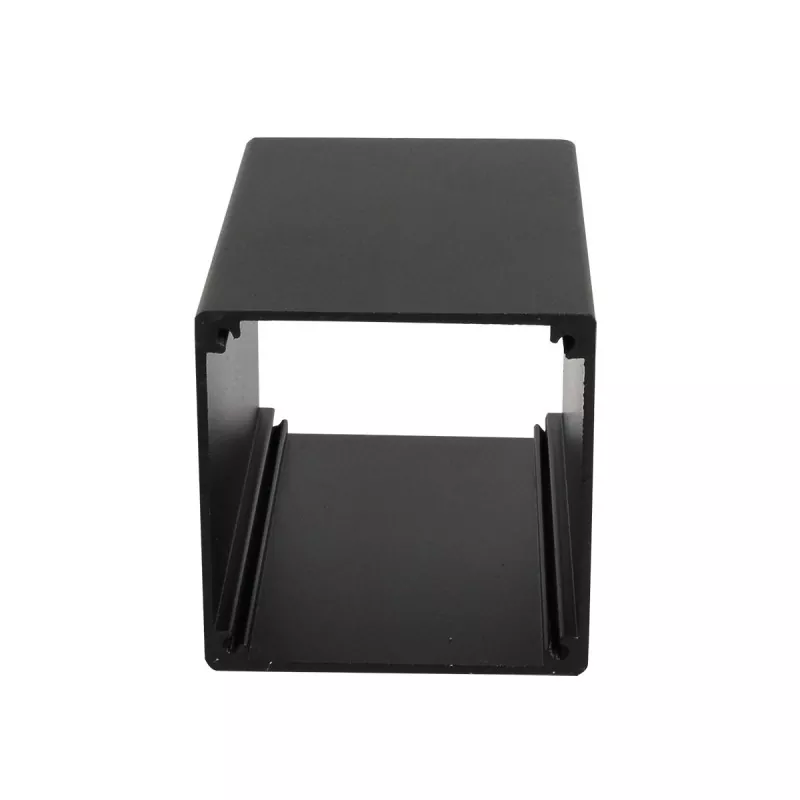

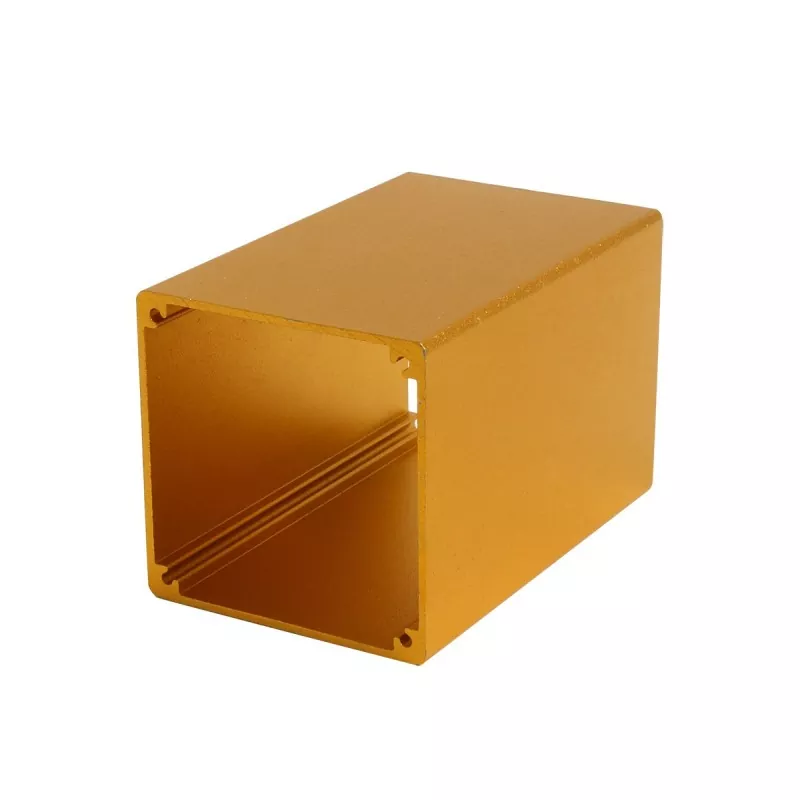

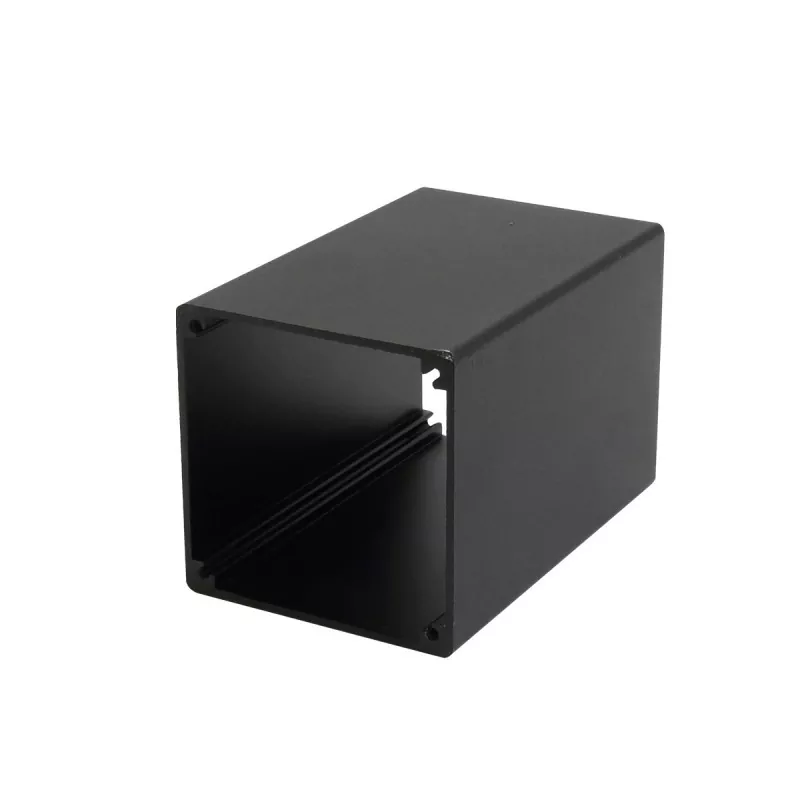

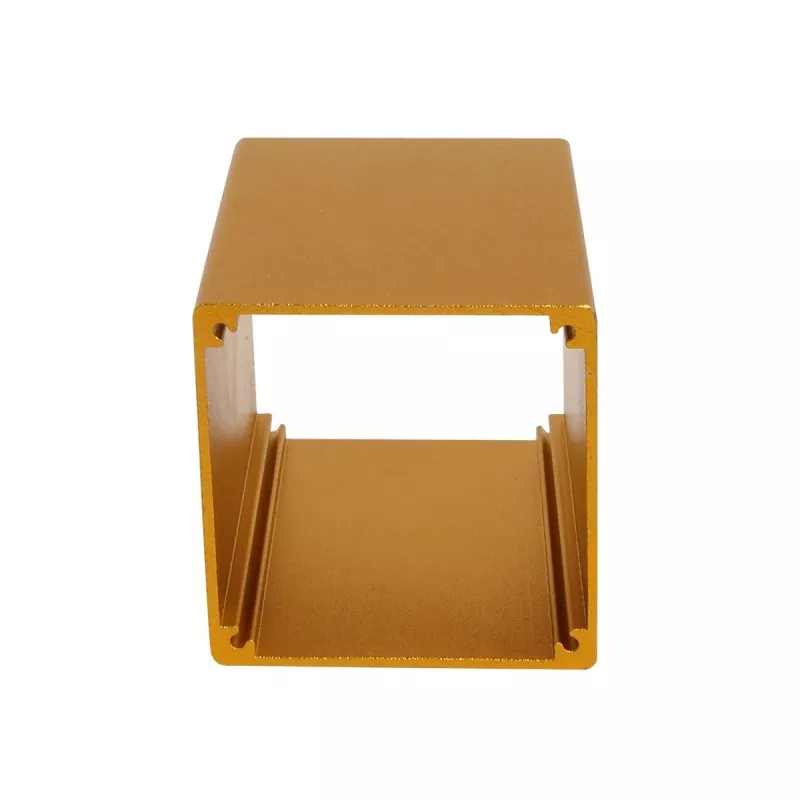

52×52mm Aluminum Industrial Control Box Enclosure

Boyuan 52×52mm Aluminum Industrial Control Box Enclosure is a mid-sized electronic device housing manufactured with an aluminum alloy extrusion structure, with an external cross-section size of 52mm (width) × 52mm (height), and the length can be customized arbitrarily according to actual equipment requirements.

The product is formed by aluminum profile extrusion, with a fixed main body cross-section size. It can be cut according to the actual length of the equipment, and final assembly is completed through end plates, CNC machining, and other supporting processes. The aluminum extrusion electronic enclosure can be designed with corresponding mounting slots or support structures according to the internal structure, for installing PCBs and other electronic components. The interior of the housing is designed with standard circuit board card slots, and the PCB can be directly inserted and fixed without additional screws, greatly improving assembly efficiency.

Compared with plastic boxes, aluminum alloy enclosures have better structural strength and a metal texture, and can achieve custom structures such as interfaces, mounting holes, threaded holes, and slots through CNC machining.

Core Advantages

01 | 52×52mm Square Large Space

The 52mm wide × 52mm high square cross-section size provides ample internal space for mid-sized electronic equipment.

The 52mm width can accommodate wider PCB layouts and side-by-side design of multiple interfaces, supporting multi-channel input/output interface layouts; the 52mm height provides extremely large component mounting space, can accommodate taller components such as large electrolytic capacitors, transformers, heat sinks, relays, and inductors, and also supports multi-layer PCB stacking or high-power device mounting with large heat sinks.

02 | Square Cross-Section, Flexible Installation

The square cross-section design of 52×52mm gives the enclosure greater flexibility during installation. The mounting direction can be adjusted arbitrarily according to equipment space requirements, adapting to different assembly scenarios and equipment layout requirements.

03 | Aluminum Extrusion Structure

The enclosure body is formed by aluminum alloy profile extrusion. The cross-section size of the aluminum extrusion enclosure is fixed, while the length can be cut according to actual product requirements. Therefore, the same specification enclosure can adapt to PCBs and electronic modules of different lengths. This structure is especially suitable for electronic products requiring series development.

04 | Suitable for PCB Mounting

The aluminum extrusion electronic enclosure can be designed with corresponding mounting slots or support structures according to the internal structure, for installing PCBs and other electronic components. The interior is standard-equipped with circuit board card slots, and the PCB can be directly inserted and fixed without additional screws. The 52mm height can accommodate multi-layer PCB stacking or high-power devices with large heat sinks, providing a reliable packaging solution for high-power electronic equipment.

05 | CNC Custom Machining Support

The standard profile is only the starting point. Boyuan Hardware can perform CNC machining on the 52×52mm aluminum enclosure according to customer drawings, including:

• Interface openings (USB, RJ45, aviation plugs, BNC interfaces, power interfaces, DB9, etc.)
• Screw holes and positioning holes
• Threaded holes and counterbore holes
• Heat dissipation slots and ventilation holes
• Screen window openings
• Button holes and switch holes
• DIN rail mounting holes
• Wall-mounting holes
• Grooves and steps
• Chamfering
• Other custom structures

06 | Length Customizable to Product

52×52mm is the cross-section specification of the enclosure, and the product length can be cut according to the actual equipment dimensions. The specific machinable length is confirmed according to material, surface treatment, and product requirements.

07 | Efficient Heat Dissipation Performance

The thermal conductivity of aluminum alloy is about 200W/(m·K). Combined with the large-area enclosure and ample internal space of 52×52mm, it can effectively conduct and dissipate heat generated by internal components. For high-power equipment, the aluminum enclosure itself is an efficient heat sink, which can extend equipment service life.

08 | Metal Enclosure Combines Structure and Appearance

Aluminum alloy is lightweight and has good structural performance, while retaining a natural metal texture. Through surface treatments such as brushing, sandblasting, and anodizing, different appearance effects can be obtained, giving electronic equipment a more professional product appearance.

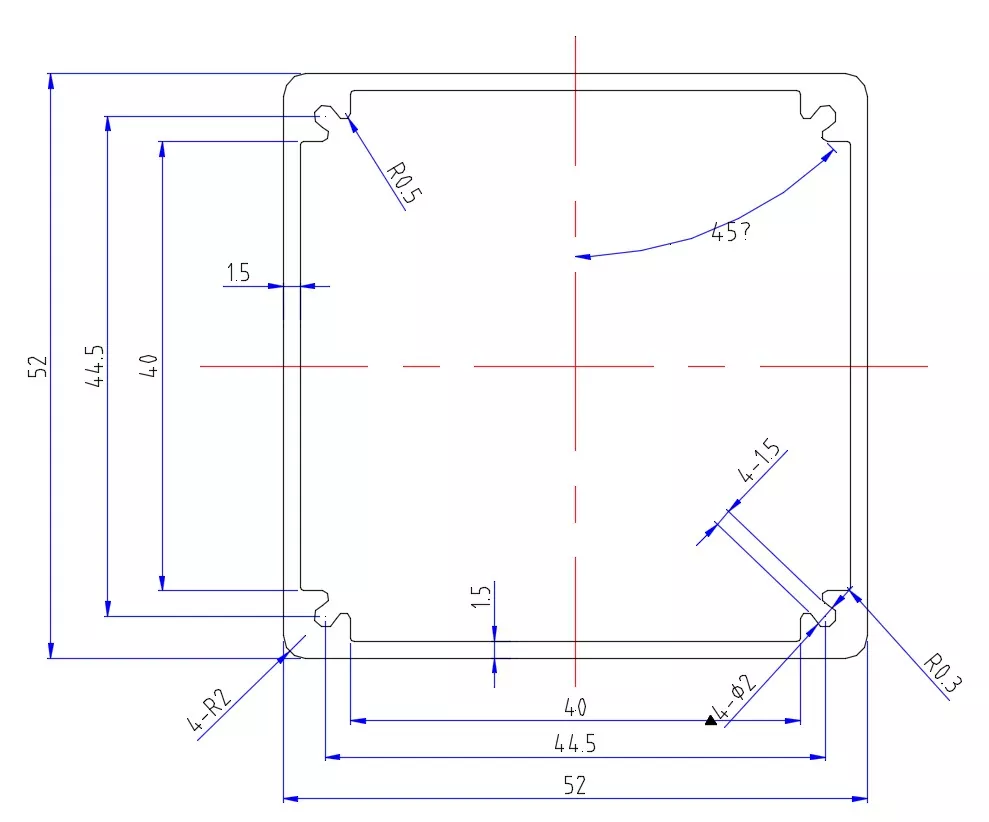

Technical Specifications

Note: Specific material grades, wall thickness, length ranges, dimensional tolerances, and surface treatment colors shall be subject to actual product drawings and order requirements.

What Products Is the 52×52mm Aluminum Enclosure Suitable For?

52×52mm belongs to the large-space aluminum enclosure category — the 52mm width and 52mm height form a square cross-section, providing extremely ample internal space that can accommodate larger PCBs, taller components, and large heat sinks. The 52mm height is the core feature that distinguishes this specification from other sizes, enabling it to carry mid-sized electronic equipment with greater power, taller components, and more complex functions, making it an ideal packaging choice for industrial control and power equipment.

1. Industrial Control Chassis and Industrial Controllers

The large-space design of 52×52mm is very suitable for industrial control products:

• Industrial control computer chassis
• Programmable logic controller (PLC) modules
• Motion control modules
• Industrial IoT gateways
• Automation control boxes
• Robot control modules
• Edge computing devices

2. Inverters and Servo Drives

• Inverter enclosures
• Servo drive modules
• Motor drive controllers
• Stepper motor drivers

3. Power Modules

The large-space design of 52×52mm is very suitable for various high-power supply products:

• Switching power supply modules
• Industrial power adapters
• Vehicle power supply enclosures
• Inverter enclosures
• Rectifier aluminum housings
• DC-DC converter modules
• UPS power supply modules
• Charger modules
• Battery management system (BMS) enclosures
• Supercapacitor module enclosures
• Photovoltaic inverter modules

4. Power Amplifiers and Audio Equipment

• High-power audio power amplifiers
• Professional amplifier enclosures
• RF power amplifiers
• Car amplifier modules
• Stage audio amplifier modules

5. Communication Base Stations and Network Equipment

• Communication base station modules
• Signal boosters/repeaters
• 5G communication modules
• Data transmission units (DTU)
• Fiber optic transceivers
• Industrial switch modules
• Router enclosures
• Wireless bridge equipment

6. Measuring Instruments and Testing Equipment

• Oscilloscope modules
• Signal generator enclosures
• Data acquisition instruments
• Power analyzers
• Spectrum analysis modules
• Hardness testing instruments
• Ultrasonic testing equipment
• Flow meter/level meter enclosures
• Multimeter modules
• Precision measuring instruments

7. Medical Testing Equipment

• Medical testing modules
• Monitoring equipment
• Portable medical instruments
• Physiotherapy equipment modules
• Biosignal acquisition modules
• Medical imaging equipment modules

8. Heat Sink Integrated Applications

The 52×52mm aluminum enclosure can be used in combination with large heat sinks:

• High-power LED driver enclosures
• Power electronic modules
• Motor controllers
• Electric vehicle charging modules
• Solar inverter modules

9. Shielding Boxes and Anti-Interference Applications

• Precision instrument shielding boxes
• High-frequency module shielding
• Medical electronic shielding
• Military-grade shielding

The aluminum alloy material provides excellent electromagnetic shielding performance, and the large space of 52×52mm can accommodate large circuit systems, effectively preventing electromagnetic interference.

What Can Be Customized for the 52×52mm Aluminum Enclosure?

Surface Treatment

Anodizing

Anodizing is one of the commonly used surface treatment methods for aluminum enclosures. It can change the appearance and surface properties of the aluminum surface and achieve different color effects.

Sandblasting

Sandblasting can form a uniform matte texture on the aluminum surface, suitable for industrial electronic equipment and instrument enclosures.

Brushing

Brushing can form regular metal textures, allowing the product to maintain an obvious aluminum alloy metal texture.

Laser Engraving

The following can be machined on the surface of the 52×52mm aluminum enclosure:

• Logo
• Product model
• Interface identification
• Product number
• Text and patterns

Silkscreen Printing

Suitable for machining multi-color logos, text, and function identification.

Professional Aluminum Enclosure Custom Machining

We not only produce standard aluminum enclosures, but can also customize according to customer product structures.

Customers only need to provide:

2D drawings / 3D models / physical samples / product dimensions

We can then perform machining evaluation according to actual product requirements.

CNC Machining Meets Non-Standard Requirements

For products that cannot be directly satisfied by the 52×52mm standard profile, customization can be achieved through subsequent CNC machining.

For example:

Interface openings + screen windows + mounting holes + threaded holes + heat dissipation slots + DIN rail mounting holes + wall-mounting holes + grooves + steps + logo

All can be machined according to customer drawings.

Workshop Show

FAQ

1. What products is the 52×52mm aluminum enclosure suitable for?

52×52mm belongs to the large-space aluminum enclosure category, suitable for industrial control chassis, power modules, inverters, servo drives, power amplifiers, communication base station equipment, measuring instruments, medical testing equipment, motor drive modules, battery management systems, etc. The square large space of 52mm × 52mm can accommodate taller components and large heat sinks.

2. Is 52×52mm the length of the enclosure?

No. 52×52mm refers to the cross-section size of the enclosure (width × height). The product length can be cut according to actual equipment and PCB length.

3. Can the length of the 52×52mm aluminum enclosure be customized?

Yes. The length of the aluminum extrusion enclosure can be cut according to product requirements. The specific length needs to be confirmed in combination with material, surface treatment, and product structure.

4. Can the 52mm height accommodate large electrolytic capacitors and transformers?

Yes. Large electrolytic capacitors are usually 35-45mm in height, and the 52mm internal height can fully accommodate them, with margin left for assembly. Small transformers can also be easily accommodated. Specific confirmation is needed according to your component dimensions.

5. Does it support DIN rail mounting?

Yes. Boyuan Hardware can machine DIN rail mounting holes on the aluminum enclosure according to customer requirements, facilitating installation of industrial control modules in distribution cabinets.

6. Can a large heat sink be installed?

Yes. The large internal space of 52×52mm can accommodate large heat sinks, and combined with the large-area aluminum alloy enclosure, it provides an excellent heat dissipation solution for high-power equipment.

7. Can heat dissipation holes be made on the aluminum enclosure?

Yes. Boyuan Hardware can machine heat dissipation slots, ventilation holes, heat dissipation ribs, and other heat dissipation structures according to customer drawings to help high-power equipment dissipate heat.

8. Can interfaces such as aviation plugs, BNC, and DB9 be machined?

CNC machining can be performed on the corresponding interface positions according to customer drawings. The 52mm width can accommodate side-by-side layout of multiple interfaces. Whether it is specifically suitable for machining needs to be confirmed according to interface dimensions and enclosure structure.

9. Can a PCB be installed?

Yes. The 52×52mm Aluminum Industrial Control Box Enclosure is standard-equipped with internal circuit board card slots, and the PCB can be directly inserted and fixed. The 52mm height supports multi-layer PCB or high-power device mounting with large heat sinks. Corresponding mounting structures can also be designed according to PCB dimensions and mounting method.

10. Can end plates be customized?

Yes. The dimensions, hole positions, and structure of the end plates can be machined according to product requirements.

11. Can a logo be made?

Yes. Logo machining methods such as laser engraving or silkscreen printing can be selected according to product requirements.

12. Can different colors be selected?

Yes. The aluminum enclosure can achieve different appearance effects through processes such as anodizing, and the color can be arbitrarily customized according to customer requirements.

13. What if 52×52mm is not suitable for my PCB?

You can send us the PCB dimensions, product structure, or 3D model. Boyuan Hardware can help confirm whether the 52×52mm specification is suitable according to actual dimensions, and can also choose other aluminum profile specifications or perform custom machining.

14. Can samples be made first?

Sample machining can be performed according to project requirements. It is recommended to confirm the sample dimensions, hole positions, assembly, and surface effect before mass production.

Why Choose Boyuan Hardware?

For electronic equipment manufacturers, what matters more is whether the supplier can complete supporting machining such as length, end plates, interface openings, screen windows, mounting holes, heat dissipation structures, DIN rail mounting holes, wall-mounting holes, PCB structures, surface treatment, and logos according to the actual product.

Boyuan has focused on the aluminum enclosure and aluminum chassis industry for over 20 years, with approximately 10,000 square meters of production factory space, providing custom aluminum enclosure machining.

From the standard 52×52mm aluminum profile to the CNC-machined finished electronic enclosure, we can machine according to customer product requirements.

If you are looking for a 52×52mm Aluminum Industrial Control Box Enclosure, you are welcome to send your PCB dimensions, product drawings, or 3D models.

We can confirm the specification, machining method, and customization plan according to your product structure.
