52×19mm Aluminum Housing for Wireless Charging Devices

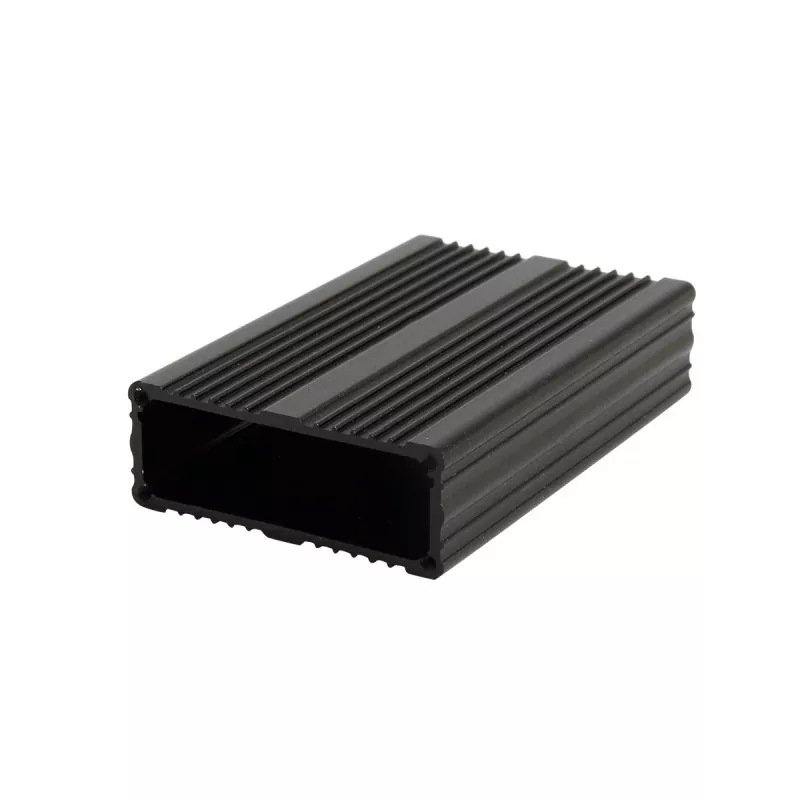

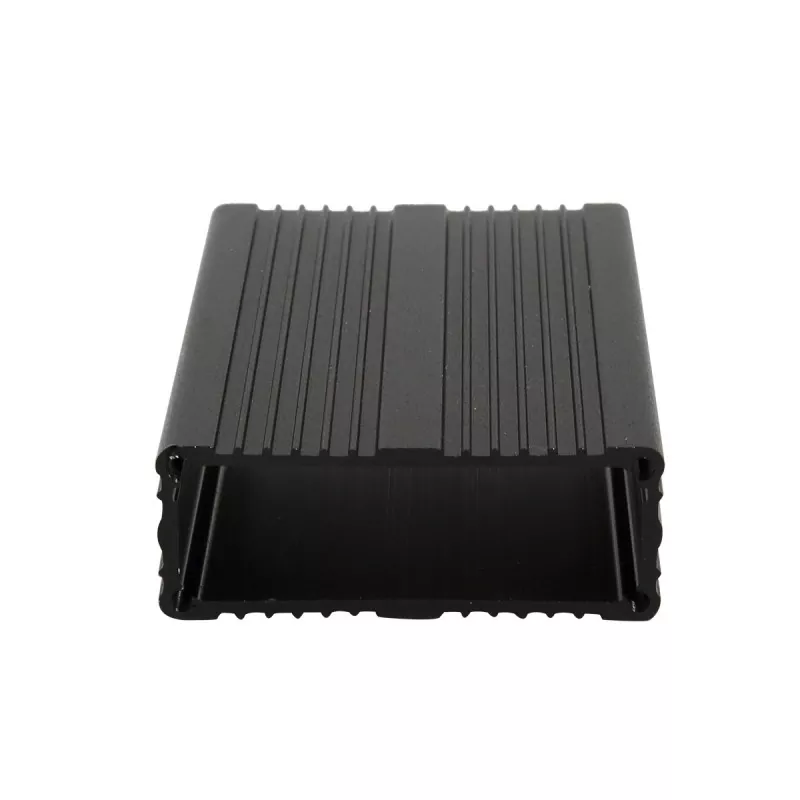

Boyuan 52×19mm Aluminum Housing for Wireless Charging Devices is a slim electronic device housing manufactured with an aluminum alloy extrusion structure, with an external cross-section size of 52mm (width) × 19mm (height), and the length can be customized arbitrarily according to actual equipment requirements.

Compared with plastic boxes, aluminum alloy enclosures have better structural strength and a metal texture, and can achieve custom structures such as interfaces, mounting holes, threaded holes, and slots through CNC machining.

Boyuan Hardware has focused on aluminum enclosure and aluminum chassis manufacturing for over 20 years, with approximately 10,000 square meters of production factory space, and can provide custom aluminum enclosure machining according to customer drawings, samples, or size requirements.

Product Advantages

01 | 52×19mm Wide and Slim Design

The 52mm wide × 19mm high cross-section size provides an ideal packaging solution for ultra-thin smart devices.

The 52mm width can accommodate standard wide PCB layouts and support side-by-side design of multiple interfaces and function modules; the 19mm thickness keeps the device slim while providing nearly 50% more internal space than the 13mm specification, allowing more components, taller parts, or better heat dissipation structures.

02 | Aluminum Extrusion Structure

The enclosure body is formed by aluminum alloy profile extrusion. The cross-section size of the aluminum extrusion enclosure is fixed, while the length can be cut according to actual product requirements. Therefore, the same specification enclosure can adapt to PCBs and electronic modules of different lengths.

03 | Suitable for PCB Mounting

The aluminum extrusion electronic enclosure can be designed with corresponding mounting slots or support structures according to the internal structure, for installing PCBs and other electronic components. The interior is standard-equipped with circuit board card slots, and the PCB can be directly inserted and fixed without additional screws.

04 | CNC Custom Machining Support

The standard profile is only the starting point. Boyuan Hardware can perform CNC machining on the 52×19mm aluminum enclosure according to customer drawings, including:

• Interface openings (USB, Type-C, DC power interfaces, etc.)
• Indicator light holes
• Button holes
• Mounting holes and positioning holes
• Threaded holes and counterbore holes
• Heat dissipation slots and ventilation structures
• Grooves and steps
• Chamfering
• Other custom structures

05 | Length Customizable to Product

52×19mm is the cross-section specification of the enclosure, and the product length can be cut according to the actual equipment dimensions. The specific machinable length is confirmed according to material, surface treatment, and product requirements.

06 | Optimized Heat Dissipation Performance

Aluminum alloy has excellent thermal conductivity. Combined with the 52mm wide-body design and 19mm height space, small heat sinks can be installed or internal air convection space can be increased. Compared with the 13mm ultra-thin specification, the 19mm height provides better heat dissipation conditions, making it more suitable for LED controllers and other devices with slightly higher power.

07 | Metal Enclosure Combines Structure and Appearance

Aluminum alloy is lightweight and has good structural performance, while retaining a natural metal texture. Through surface treatments such as brushing, sandblasting, and anodizing, different appearance effects can be obtained, giving ultra-thin devices a more refined product texture.

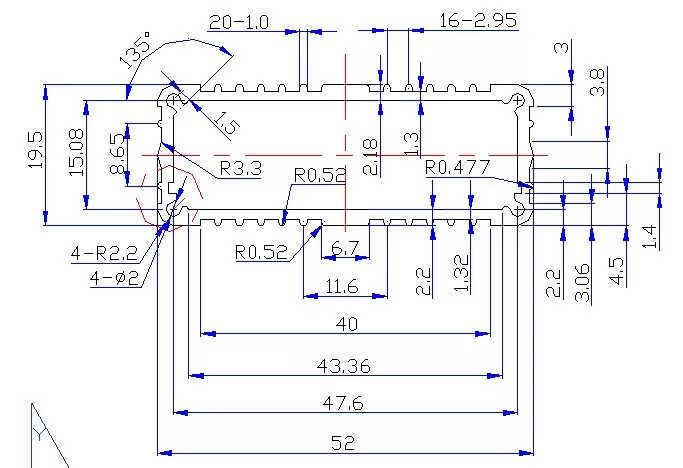

Technical Specifications

Note: Specific material grades, wall thickness, length ranges, dimensional tolerances, and surface treatment colors shall be subject to actual product drawings and order requirements.

What Products Is the 52×19mm Aluminum Enclosure Suitable For?

52×19mm belongs to the ultra-wide slim aluminum enclosure category — the 52mm width can accommodate standard wide PCBs and side-by-side layout of multiple function modules, and the 19mm height provides more ample internal space while maintaining a slim profile. The 19mm thickness offers nearly 50% more internal space than the ultra-thin specification, allowing devices to accommodate more components or achieve better heat dissipation while maintaining a slim profile.

1. LED Strip Controllers and Dimmers

52×19mm is an ideal packaging solution for LED strip controllers:

• LED strip controllers
• RGB/RGBW dimming controllers
• DMX512 decoders
• SPI signal amplifiers
• Smart lighting control modules
• 0-10V/PWM dimmers

Why is 52×19mm suitable for LED strip controllers? Compared with the 13mm ultra-thin specification, the 19mm height provides greater internal space, accommodating taller components and better heat dissipation structures. For LED controllers with slightly higher power (such as RGBW controllers and DMX decoders), the MOS transistors and driver chips generate considerable heat during operation, and the 19mm height allows the aluminum alloy enclosure to dissipate heat better, extending controller service life. The 52mm width can accommodate a wider PCB, supporting side-by-side layout of multiple output interfaces.

2. Wireless Chargers

• Desktop wireless chargers
• Car wireless charging modules
• Embedded wireless charging pads
• Multi-device wireless charging panels

Why is 52×19mm suitable for wireless chargers? Wireless chargers pursue ultra-thin designs to enhance user experience. The 19mm thickness maintains a slim profile while providing more internal space than the 13mm specification to accommodate the wireless charging coil (approximately 45-50mm in diameter) and control circuit board. The aluminum alloy enclosure helps dissipate heat during charging.

3. Smart Switches and Smart Panels

• WiFi smart switch modules
• Zigbee/Z-wave control modules
• Smart dimming panels
• Thermostat panels
• Smart home control panels
• Scene control panels

Why is 52×19mm suitable for smart panels? Smart switch panels need to be embedded in standard 86-box installation, where internal space is limited. The 52mm width matches standard panel dimensions, and the 19mm thickness allows the panel to be slim and aesthetically pleasing while providing more space than the 13mm specification to accommodate relays, power modules, and other components.

4. Bluetooth Modules and Wireless Communication Modules

• Bluetooth audio receivers
• Bluetooth amplifier modules
• Bluetooth Mesh nodes
• Wireless communication modules
• 2.4G module enclosures

5. Electronic Price Tags and Electronic Labels

• Supermarket electronic price tags
• Warehouse electronic labels
• Smart shelf labels
• ESL electronic shelf labels

The 19mm thickness can accommodate electronic paper screens (usually including backplane and control circuit), and the 52mm width can fit 4.2-inch screens.

6. Ultra-Thin Sensor Modules

• Ultra-thin photoelectric sensors
• Infrared human body sensing modules
• Illuminance sensors
• Temperature and humidity sensors
• PM2.5 detection modules
• Carbon dioxide detection modules

7. Ultra-Thin Power Supplies and Adapters

• Ultra-thin power adapters
• LED driver power supplies
• Fast charging module enclosures
• DC-DC conversion modules
• Desktop charging modules

8. Smart Home Control Modules

• Smart curtain control modules
• Smart lighting control modules
• Smart socket modules
• Environmental monitoring terminals
• Smart gateway modules

What Can Be Customized?

Surface Treatment

Anodizing

Anodizing is one of the commonly used surface treatment methods for aluminum enclosures. It can change the appearance and surface properties of the aluminum surface and achieve different color effects.

Sandblasting

Sandblasting can form a uniform matte texture on the aluminum surface, suitable for industrial equipment and smart home enclosures.

Brushing

Brushing can form regular metal textures, allowing the product to maintain an obvious aluminum alloy metal texture.

Laser Engraving

The following can be machined on the surface of the 52×19mm aluminum enclosure:

• Logo
• Product model
• Interface identification
• Product number
• Text and patterns

Silkscreen Printing

Suitable for machining multi-color logos, text, and function identification.

Professional Aluminum Enclosure Custom Machining

We not only produce standard aluminum enclosures, but can also customize according to customer product structures.

Customers only need to provide:

2D drawings / 3D models / physical samples / product dimensions

We can then perform machining evaluation according to actual product requirements.

CNC Machining Meets Non-Standard Requirements

For products that cannot be directly satisfied by the 52×19mm standard profile, customization can be achieved through subsequent CNC machining.

For example:

Interface openings + indicator light holes + button holes + heat dissipation slots + mounting holes + grooves + steps + logo

All can be machined according to customer drawings.

Product Selection Guide

If Your Device Needs to Be Slim but Requires More Internal Space

The 19mm height offers nearly 50% more internal space than the 13mm specification, accommodating more components, taller parts, or better heat dissipation structures. Suitable for LED controllers with slightly higher power, and devices with relays or power modules.

If Your PCB Width Is Close to 52mm

52×19mm is an ideal choice — the 52mm width provides ample PCB routing space and side-by-side layout of function modules.

If You Need Embedded Installation

The 19mm slim thickness is suitable for installation in narrow spaces such as inside walls, inside equipment, and inside furniture.

If You Need Better Heat Dissipation Performance

The 19mm height allows the installation of small heat sinks or increased air convection space, providing better heat dissipation conditions than ultra-thin specifications, suitable for power devices with slightly higher heat generation.

If You Need to Install in a Standard Panel

The 52mm width matches standard 86 panel dimensions, suitable for smart switches, thermostats, and other panel-type products.

If PCB Lengths Differ

The profile can be cut according to product length, and the same cross-section specification can adapt to products of different lengths.

Workshop Show

FAQ

1. What products is the 52×19mm aluminum enclosure suitable for?

52×19mm Aluminum Housing for Wireless Charging Devices belongs to the ultra-wide slim aluminum enclosure category. Core applications include LED strip controllers, wireless chargers, smart switch panels, Bluetooth modules, electronic price tags, ultra-thin sensors, ultra-thin power supplies, etc. The 19mm height maintains a slim profile while providing nearly 50% more internal space than the 13mm specification.

2. Is 52×19mm the length of the enclosure?

No. 52×19mm refers to the cross-section size of the enclosure (width × height). The product length can be cut according to actual equipment and PCB length.

3. What is the difference between 52×19mm and 52×13mm?

52×19mm is 6mm taller than 52×13mm, with nearly 50% more internal space. The 19mm specification can accommodate more components and taller parts (such as small electrolytic capacitors and relays), and also offers better heat dissipation conditions, suitable for devices with slightly higher power.

4. Can the length of the 52×19mm aluminum enclosure be customized?

Yes. The length of the aluminum extrusion enclosure can be cut according to product requirements. The specific length needs to be confirmed in combination with material, surface treatment, and product structure.

5. Is it suitable for LED strip controllers?

Very suitable. The 19mm height provides greater internal space than the 13mm ultra-thin specification, accommodating power components such as MOS transistors and inductors. The aluminum alloy enclosure helps dissipate heat from the driver chip, suitable for LED controllers with slightly higher power.

6. Can a Type-C interface hole be made on the aluminum enclosure?

Yes. Boyuan Hardware can precisely machine various interface openings such as Type-C, USB, and DC power interfaces according to customer drawings.

As a China Manufacturer and Supplier, Boyuan provides customized aluminum profiles with length cutting, CNC machining, drilling, tapping, interface openings, indicator light holes, button holes, heat dissipation slots, end plates, logos, surface treatment, and color customization. Contact Boyuan for your next wireless charging device housing project.
