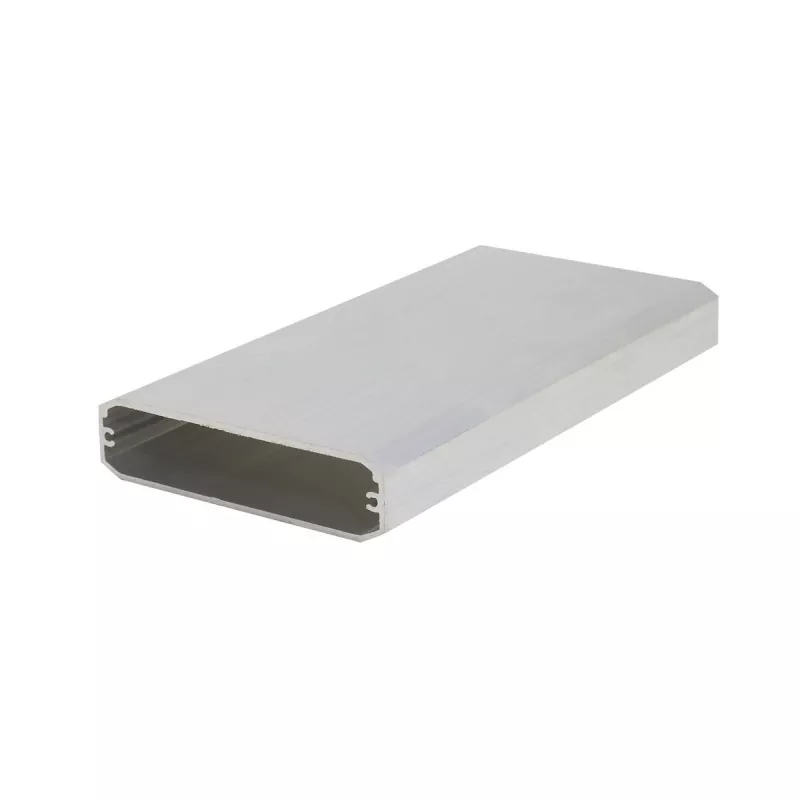

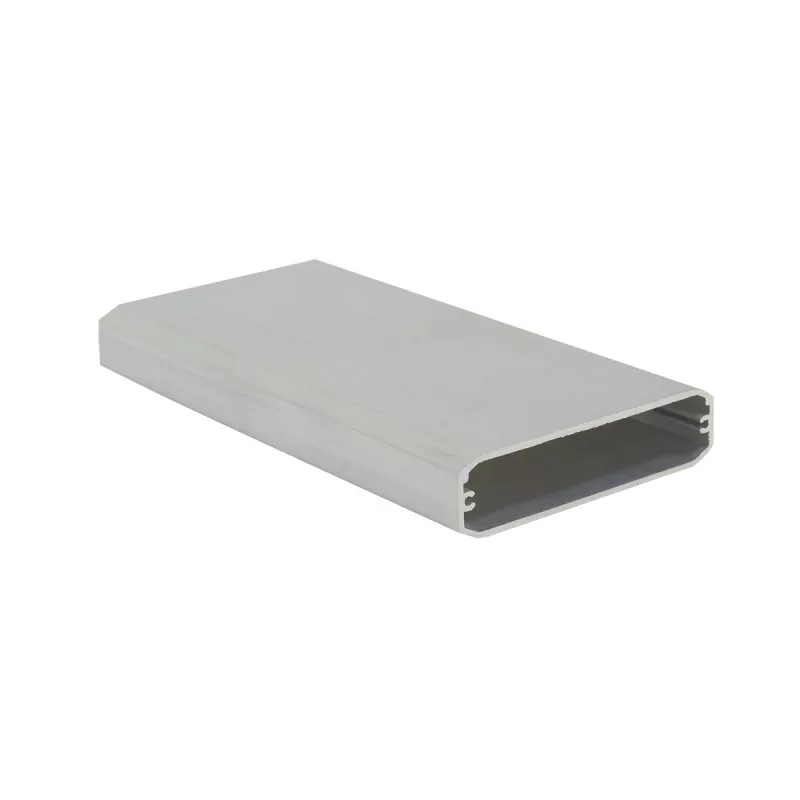

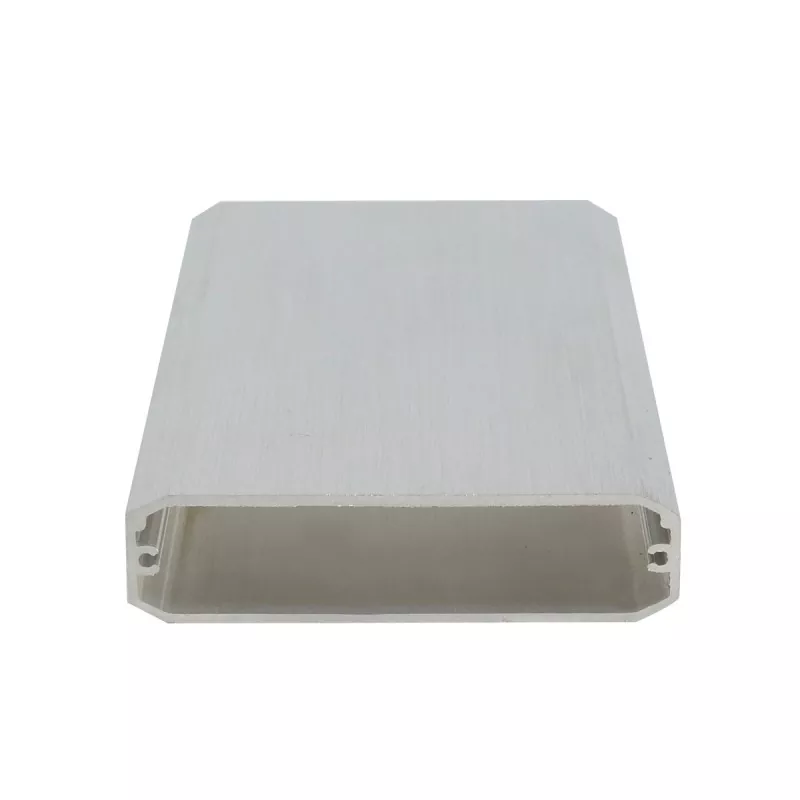

52×13mm LED Strip Controller Aluminum Enclosure

Boyuan 52×13mm aluminum enclosure is an ultra-thin electronic device housing manufactured with an aluminum alloy extrusion structure, with an external cross-section size of 52mm (width) × 13mm (height), and the length can be customized arbitrarily according to actual equipment requirements.

52×13mm LED Strip Controller Aluminum Enclosure is formed by aluminum profile extrusion, with a fixed main body cross-section size. It can be cut according to the actual length of the equipment, and final assembly is completed through end plates, CNC machining, and other supporting processes. The aluminum extrusion electronic enclosure can be designed with corresponding mounting slots or support structures according to the internal structure, for installing PCBs and other electronic components. The interior of the housing is designed with standard circuit board card slots, and the PCB can be directly inserted and fixed without additional screws, greatly improving assembly efficiency.

Compared with plastic boxes, aluminum alloy enclosures have better structural strength and a metal texture, and can achieve custom structures such as interfaces, mounting holes, threaded holes, and slots through CNC machining.

Boyuan Hardware has focused on aluminum enclosure and aluminum chassis manufacturing for over 20 years, with approximately 10,000 square meters of production factory space, and can provide custom aluminum enclosure machining according to customer drawings, samples, or size requirements.

Product Core Advantages

01 | 52×13mm Ultra-Wide and Ultra-Thin Design

The 52mm wide × 13mm high cross-section size provides an extremely slim packaging solution for ultra-thin smart devices.

The 52mm width can accommodate standard wide PCB layouts and support side-by-side design of multiple interfaces and function modules; the 13mm ultra-thin height is one of the thinnest specifications currently available in the aluminum enclosure industry, enabling devices to achieve a card-like ultra-thin profile and greatly enhancing product quality perception and technological appeal.

02 | Aluminum Extrusion Structure

The enclosure body is formed by aluminum alloy profile extrusion. The cross-section size of the aluminum extrusion enclosure is fixed, while the length can be cut according to actual product requirements. Therefore, the same specification enclosure can adapt to PCBs and electronic modules of different lengths.

03 | Suitable for PCB Mounting

The aluminum extrusion electronic enclosure can be designed with corresponding mounting slots or support structures according to the internal structure, for installing PCBs and other electronic components. The interior is standard-equipped with circuit board card slots, and the PCB can be directly inserted and fixed without additional screws. The 13mm height is precisely designed to accommodate standard 1.6mm thick PCBs and surface-mount components.

04 | CNC Custom Machining Support

The standard profile is only the starting point. Boyuan Hardware can perform CNC machining on the 52×13mm aluminum enclosure according to customer drawings, including:

• Interface openings (USB, Type-C, DC power interfaces, etc.)
• Indicator light holes
• Button holes
• Mounting holes and positioning holes
• Threaded holes and counterbore holes
• Grooves and steps
• Heat dissipation structures
• Chamfering
• Other custom structures

05 | Length Customizable to Product

52×13mm is the cross-section specification of the enclosure, and the product length can be cut according to the actual equipment dimensions. The specific machinable length is confirmed according to material, surface treatment, and product requirements.

06 | Metal Enclosure Combines Structure and Appearance

Aluminum alloy is lightweight and has good structural performance, while retaining a natural metal texture. Through surface treatments such as brushing, sandblasting, and anodizing, different appearance effects can be obtained, giving ultra-thin devices a more refined product texture.

07 | Suitable for Embedded Installation

The 13mm ultra-thin thickness makes the 52×13mm aluminum enclosure very suitable for embedded installation in narrow spaces — such as inside walls, inside furniture, inside equipment, and inside LED strip channels — without occupying extra space.

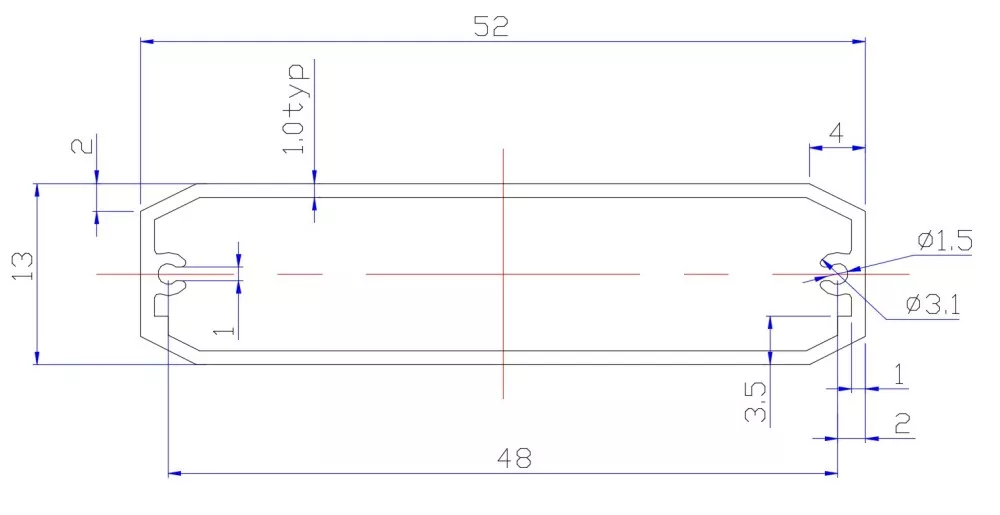

Technical Specifications

Note: Specific material grades, wall thickness, length ranges, dimensional tolerances, and surface treatment colors shall be subject to actual product drawings and order requirements.

What Products Is It Suitable For?

52×13mm belongs to the ultra-wide and ultra-thin aluminum enclosure category — the 52mm width can accommodate standard wide PCB layouts, and the 13mm height achieves a card-like ultra-thin profile. The 13mm ultra-thin height is the core feature that distinguishes this specification from all other sizes, making it one of the thinnest aluminum enclosures in the industry, and especially suitable for ultra-thin smart devices with extreme thickness requirements.

1. LED Strip Controllers and Dimmers

• LED strip controllers
• RGB/RGBW dimming controllers
• DMX decoders
• LED dimmers
• Smart lighting control modules
• Curtain motor controllers

Why is 52×13mm suitable for LED strip controllers? LED strip controllers usually need to be installed side by side with the LED channel or embedded inside the strip channel, where installation space is extremely limited. The 13mm ultra-thin height allows the controller to be easily placed inside the strip channel or attached to the back of the strip. The 52mm width can accommodate a wider PCB and multiple interfaces (power input, signal input, strip output), and the aluminum alloy enclosure helps dissipate heat from the driver chip, extending controller service life.

2. Wireless Chargers

• Desktop wireless chargers
• Car wireless charging modules
• Embedded wireless charging pads
• Multi-device wireless charging panels

Why is 52×13mm suitable for wireless chargers? Wireless chargers pursue ultra-thin designs to enhance user experience. The 13mm ultra-thin height allows the charger to achieve a nearly card-like thickness, and the 52mm width can accommodate a standard wireless charging coil (approximately 45-50mm in diameter) and control circuit board. The aluminum alloy enclosure helps dissipate heat during charging.

3. Smart Sockets and Smart Switch Panels

• Smart socket enclosures
• WiFi smart switch modules
• Zigbee control modules
• Smart home control panels

Why is 52×13mm suitable for smart switch panels? Smart switches need to be embedded in standard 86-box installation, where internal space is limited. The 52mm width matches standard panel dimensions, and the 13mm ultra-thin thickness allows the panel to be slim and aesthetically pleasing, without protruding from the wall.

4. Electronic Price Tags and Electronic Labels

• Supermarket electronic price tags
• Warehouse electronic labels
• Smart shelf labels
• ESL electronic shelf labels

Why is 52×13mm suitable for electronic price tags? Electronic price tags need to be attached to shelf edges, with extremely high requirements for thickness. The 13mm ultra-thin height makes the price tag occupy almost no shelf space, and the 52mm width can accommodate an electronic paper screen (common sizes are 4.2 inches/5.8 inches, etc.) and control circuit board.

5. Ultra-Thin Sensors

• Ultra-thin photoelectric sensors
• Infrared human body sensing modules
• Illuminance sensors
• Temperature and humidity sensors
• Ultrasonic distance measurement modules
• PM2.5 detection modules

6. LED Display Control Cards

• Small LED control cards
• Display receiving cards
• Asynchronous control cards

7. Bluetooth Beacons and Positioning Tags

• Bluetooth beacons
• Indoor positioning tags
• Asset tracking tags
• Anti-lost devices

8. Ultra-Thin Power Supplies and Adapters

• Ultra-thin power adapters
• LED driver power supplies
• Fast charging module enclosures
• DC-DC conversion modules

9. Smart Home Control Modules

• Smart curtain control modules
• Smart lighting control modules
• Thermostat panels
• Environmental monitoring terminals

Customizable Parameters

Surface Treatment

Anodizing

Anodizing is one of the commonly used surface treatment methods for aluminum enclosures. It can change the appearance and surface properties of the aluminum surface and achieve different color effects.

Sandblasting

Sandblasting can form a uniform matte texture on the aluminum surface, suitable for industrial equipment and smart home enclosures.

Brushing

Brushing can form regular metal textures, allowing the product to maintain an obvious aluminum alloy metal texture.

Laser Engraving

The following can be machined on the surface of the 52×13mm aluminum enclosure:

• Logo
• Product model
• Interface identification
• Product number
• Text and patterns

Silkscreen Printing

Suitable for machining multi-color logos, text, and function identification.

Professional Aluminum Enclosure Custom Machining

We not only produce standard aluminum enclosures, but can also customize according to customer product structures.

Customers only need to provide:

2D drawings / 3D models / physical samples / product dimensions

We can then perform machining evaluation according to actual product requirements.

CNC Machining Meets Non-Standard Requirements

For products that cannot be directly satisfied by the 52×13mm standard profile, customization can be achieved through subsequent CNC machining.

For example:

Interface openings + indicator light holes + button holes + mounting holes + grooves + steps + logo

All can be machined according to customer drawings.

Product Selection Guide

If Your Device Has Extreme Thickness Requirements

13mm is one of the thinnest specifications currently available in the aluminum enclosure industry, suitable for LED strip controllers, wireless chargers, electronic price tags, and other products with extremely high thickness requirements.

If Your PCB Width Is Close to 52mm

52×13mm is an ideal choice — the 52mm width provides ample PCB routing space and function module layout.

If You Need Embedded Installation

The 13mm ultra-thin thickness is suitable for installation in narrow spaces — inside LED strip channels, inside walls, inside equipment, etc. — without occupying extra space.

If You Need to Install in a Standard Panel

The 52mm width matches standard 86 panel dimensions, suitable for smart switches, thermostats, and other panel-type products.

If Your Product Needs Heat Dissipation

The aluminum alloy material has excellent thermal conductivity, suitable for LED controllers and other ultra-thin devices with relatively large heat generation.

If PCB Lengths Differ

The profile can be cut according to product length, and the same cross-section specification can adapt to products of different lengths.

Workshop Show

FAQ

1. What products is this aluminum enclosure suitable for?

52×13mm LED Strip Controller Aluminum Enclosure belongs to the ultra-wide and ultra-thin aluminum enclosure category. Core applications include LED strip controllers, wireless chargers, smart sockets, smart switch panels, electronic price tags, Bluetooth beacons, ultra-thin sensors, display control cards, etc. The 13mm ultra-thin height is one of the thinnest aluminum enclosures in the industry, suitable for ultra-thin smart devices with extreme thickness requirements.

2. Is 52×13mm the length of the enclosure?

No. 52×13mm refers to the cross-section size of the enclosure (width × height). The product length can be cut according to actual equipment and PCB length.

3. Can the length of the 52×13mm aluminum enclosure be customized?

Yes. The length of the aluminum extrusion enclosure can be cut according to product requirements. The specific length needs to be confirmed in combination with material, surface treatment, and product structure.

4. Can the 13mm height accommodate a PCB?

Yes. The 13mm height is precisely designed to accommodate standard 1.6mm thick PCBs and surface-mount components. Specific confirmation is needed according to your PCB thickness and component height.

5. Is it suitable for LED strip controllers?

Very suitable. The 13mm ultra-thin height can easily fit inside the LED strip channel, and the 52mm width can accommodate the controller PCB and multiple interfaces. The aluminum alloy enclosure helps dissipate heat from the driver chip.

6. Can a Type-C interface hole be made on the aluminum enclosure?

Yes. Boyuan Hardware can precisely machine various interface openings such as Type-C, USB, and DC power interfaces according to customer drawings.
