50×44mm Aluminum Power Supply and Industrial Control Enclosure

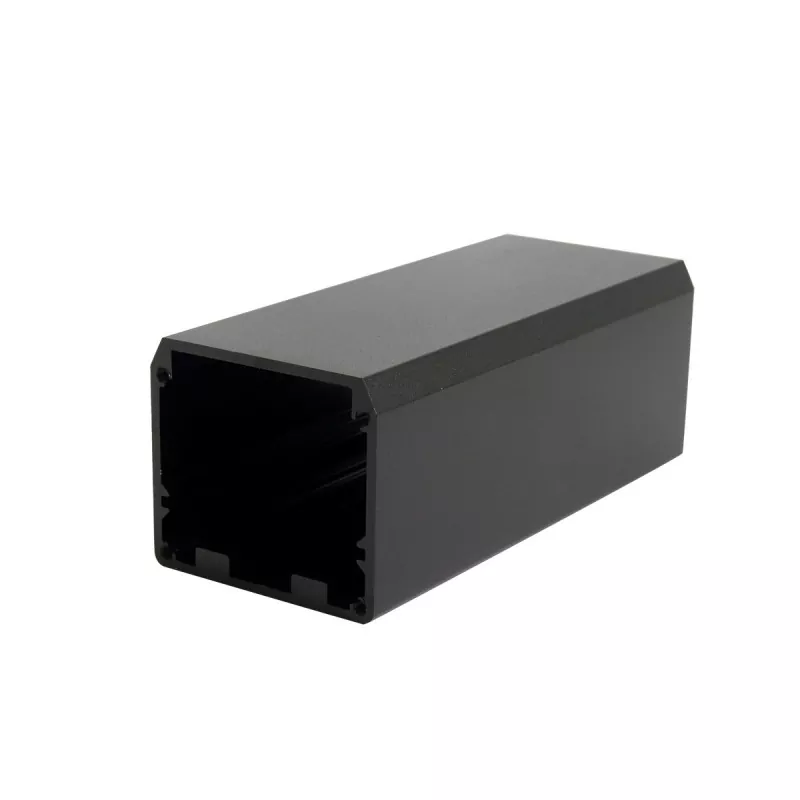

Boyuan 50×44mm Aluminum Power Supply and Industrial Control Enclosure is a mid-sized electronic device housing manufactured with an aluminum alloy extrusion structure, with an external cross-section size of 50mm (width) × 44mm (height), and the length can be customized arbitrarily according to actual equipment requirements.

The product is formed by aluminum profile extrusion, with a fixed main body cross-section size. It can be cut according to the actual length of the equipment, and final assembly is completed through end plates, CNC machining, and other supporting processes.

The aluminum extrusion electronic enclosure can be designed with corresponding mounting slots or support structures according to the internal structure, for installing PCBs and other electronic components. The interior of the housing is designed with standard circuit board card slots, and the PCB can be directly inserted and fixed without additional screws, greatly improving assembly efficiency.

Compared with plastic boxes, aluminum alloy enclosures have better structural strength and a metal texture, and can achieve custom structures such as interfaces, mounting holes, threaded holes, and slots through CNC machining.

The core value of 50×44mm lies in its "wide body and large space" — the 50mm width can accommodate standard wide PCBs and multiple interface layouts, and the 44mm height provides ample internal space for installing taller components.

This specification is especially suitable for power modules, power amplifiers, industrial controllers, measuring instruments, communication base station equipment, data acquisition and transmission equipment, motor drive modules, medical testing instruments, and other mid-sized electronic equipment with high requirements for internal space.

Boyuan Hardware has focused on aluminum enclosure and aluminum chassis manufacturing for over 20 years, with approximately 10,000 square meters of production factory space, and can provide custom aluminum enclosure machining according to customer drawings, samples, or size requirements.

Product Core Advantages

01 | 50×44mm Ample Space Design

The 50mm wide × 44mm high cross-section size provides ample internal space for mid-sized electronic equipment.

The 50mm width can accommodate wider PCB layouts and side-by-side design of multiple interfaces; the 44mm height provides greater component mounting space, can accommodate taller components such as electrolytic capacitors, transformers, heat sinks, and relays, and also supports double-sided PCB design, meeting the integration needs of complex circuit systems.

02 | Aluminum Extrusion Structure

The enclosure body is formed by aluminum alloy profile extrusion.

The cross-section size of the aluminum extrusion enclosure is fixed, while the length can be cut according to actual product requirements. Therefore, the same specification enclosure can adapt to PCBs and electronic modules of different lengths. This structure is especially suitable for electronic products requiring series development.

03 | Suitable for PCB Mounting

The aluminum extrusion electronic enclosure can be designed with corresponding mounting slots or support structures according to the internal structure, for installing PCBs and other electronic components.

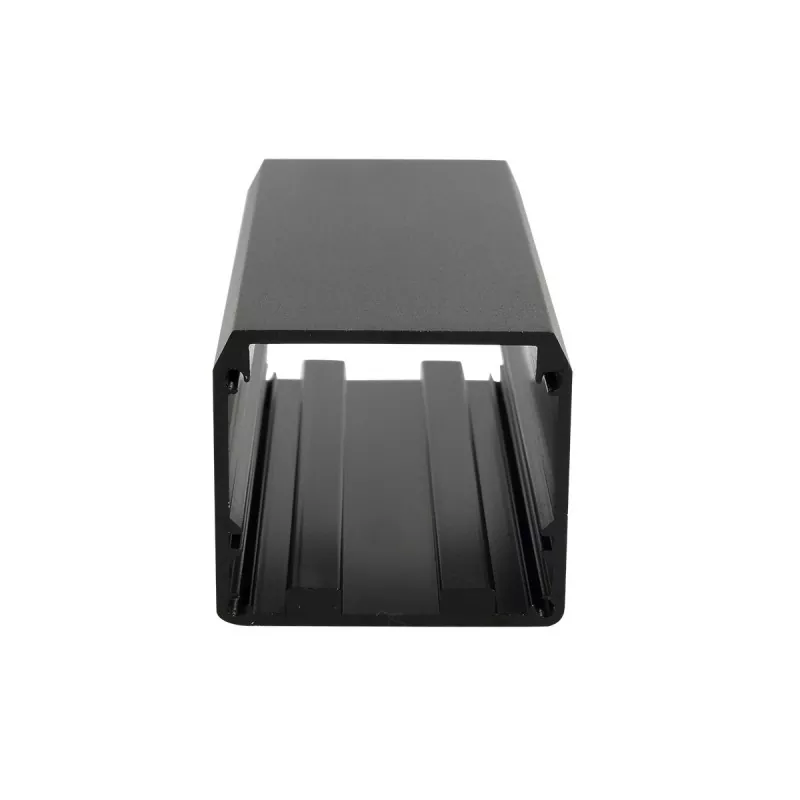

The interior is standard-equipped with circuit board card slots, and the PCB can be directly inserted and fixed without additional screws. The 44mm height can accommodate double-layer PCB stacking or high-power devices with heat sinks, providing a reliable packaging solution for high-power electronic equipment.

04 | CNC Custom Machining Support

The standard profile is only the starting point.

Boyuan Hardware can perform CNC machining on the 50×44mm aluminum enclosure according to customer drawings, including:

• Interface openings (USB, RJ45, power interfaces, aviation plugs, etc.)
• Screw holes and positioning holes
• Threaded holes and counterbore holes
• Grooves and steps
• Heat dissipation slots and ventilation holes
• Chamfering
• Other custom structures

05 | Length Customizable to Product

50×44mm is the cross-section specification of the enclosure, and the 50×44mm Aluminum Power Supply and Industrial Control Enclosure length can be cut according to the actual equipment dimensions. The specific machinable length is confirmed according to material, surface treatment, and product requirements.

06 | Efficient Heat Dissipation Performance

The thermal conductivity of aluminum alloy is about 200W/(m·K). Combined with the larger surface area of 50×44mm, it can effectively conduct and dissipate heat generated by internal components. For equipment with large heat generation such as power modules and power amplifiers, the aluminum enclosure itself is an efficient heat sink, which can extend equipment service life.

07 | Metal Enclosure Combines Structure and Appearance

Aluminum alloy is lightweight and has good structural performance, while retaining a natural metal texture. Through surface treatments such as brushing, sandblasting, and anodizing, different appearance effects can be obtained, giving electronic equipment a more professional product appearance.

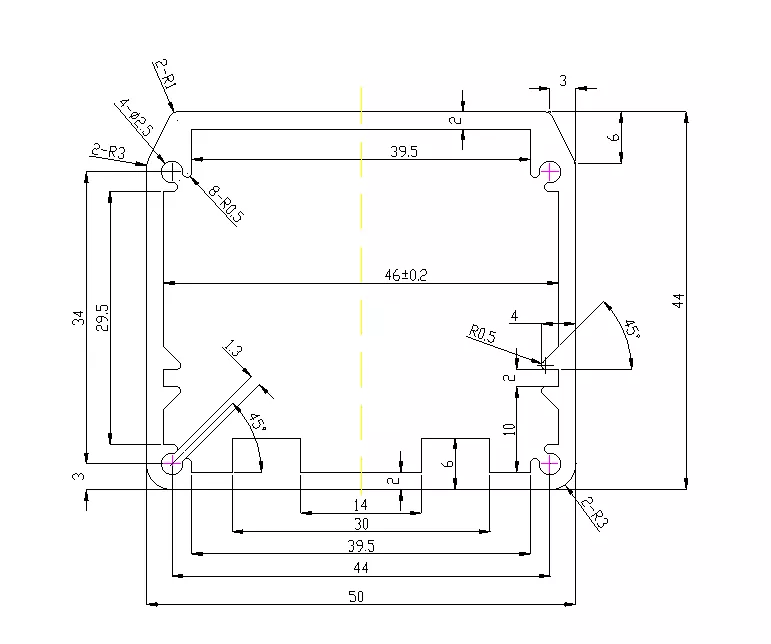

50×44mm Aluminum Enclosure Technical Specifications

Note: Specific material grades, wall thickness, length ranges, dimensional tolerances, and surface treatment colors shall be subject to actual product drawings and order requirements.

What Products Is the 50×44mm Aluminum Enclosure Suitable For?

50×44mm belongs to the ample-space aluminum enclosure category — the 50mm width supports side-by-side layout of multiple interfaces, and the 44mm height can accommodate taller components and heat sinks. The 44mm height is the core feature that distinguishes this specification from small enclosures, enabling it to carry electronic equipment with greater power and taller components.

1. Power Modules

The ample space design of 50×44mm is very suitable for various power products:

• Switching power supply modules
• Power adapters
• Vehicle power supply enclosures
• Inverter enclosures
• Rectifier aluminum housings
• DC-DC converter modules
• UPS power supply modules
• Charger modules

Why is 50×44mm suitable for power modules? Power modules usually need to accommodate taller components such as electrolytic capacitors (typically 25-35mm in height), transformers, and heat sinks. The 44mm height provides ample mounting space, while the 50mm width can accommodate wide PCB layouts, and the aluminum alloy material also helps high-power devices dissipate heat efficiently.

2. Power Amplifiers and Audio Equipment

• Amplifier enclosures
• Audio power amplifiers
• Signal amplifier modules
• RF power amplifiers

Why is 50×44mm suitable for amplifiers? Power amplifiers need relatively large internal space to accommodate amplifier circuits, heat sinks, and power supply sections. The 44mm height can install taller components, and the aluminum alloy enclosure also serves a heat dissipation function, suitable for audio and RF amplifier equipment with large heat generation.

3. Industrial Control and Automation Modules

• Industrial controllers
• Programmable logic controller (PLC) modules
• Motion control modules
• Motor drive modules
• Inverter modules
• I/O expansion modules
• Automation control boxes

Why is 50×44mm suitable for industrial control modules? Industrial control modules usually need to accommodate many interfaces (RS232, RS485, CAN, Ethernet, etc.) and larger-sized control boards. The 50mm width can accommodate multiple interfaces side by side, and the 44mm height can install power devices with heat sinks.

4. Measuring Instruments and Testing Equipment

• Oscilloscope modules
• Signal generator enclosures
• Data acquisition instruments
• Power analyzers
• Spectrum analysis modules
• Hardness testing instruments
• Ultrasonic testing equipment
• Flow meter/level meter enclosures

Why is 50×44mm suitable for measuring instruments? Measuring instruments need larger PCB layouts to accommodate signal processing circuits and multiple interfaces. The 50mm width can accommodate standard wide PCBs, and the 44mm height can accommodate components such as transformers and relays.

5. Communication and Network Equipment

• Communication base station modules
• Signal boosters
• GPS/GPRS/5G communication modules
• Data transmission units (DTU)
• Fiber optic transceivers
• Wireless bridge equipment
• Switch modules

6. Medical Testing Equipment

• Medical testing modules
• Monitoring equipment
• Portable medical instruments
• Physiotherapy equipment modules
• Biosignal acquisition modules

7. Heat Sink Integrated Applications

The 50×44mm aluminum enclosure can be used in combination with internal heat sinks:

• High-power LED driver enclosures
• Power electronic modules
• Motor controllers
• Battery management system (BMS) enclosures
• Supercapacitor module enclosures

8. Shielding Boxes and Anti-Interference Applications

• Precision instrument shielding boxes
• High-frequency module shielding
• Medical electronic shielding

The aluminum alloy material provides excellent electromagnetic shielding performance, effectively preventing electromagnetic interference.

9. Teaching and Scientific Research Experimental Equipment

• Experimental instrument enclosures
• Teaching demonstration modules
• Scientific research data acquisition equipment

What Can Be Customized for the 50×44mm Aluminum Enclosure?

Surface Treatment

Anodizing

Anodizing is one of the commonly used surface treatment methods for aluminum enclosures. 50×44mm Aluminum Power Supply and Industrial Control Enclosure can change the appearance and surface properties of the aluminum surface and achieve different color effects.

Sandblasting

Sandblasting can form a uniform matte texture on the aluminum surface, suitable for industrial electronic equipment and instrument enclosures.

Brushing

Brushing can form regular metal textures, allowing the product to maintain an obvious aluminum alloy metal texture.

Laser Engraving

The following can be machined on the surface of the 50×44mm aluminum enclosure:

• Logo
• Product model
• Interface identification
• Product number
• Text and patterns

Silkscreen Printing

Suitable for machining multi-color logos, text, and function identification.

Professional Aluminum Enclosure Custom Machining

We not only produce standard aluminum enclosures, but can also customize according to customer product structures.

Customers only need to provide:

2D drawings / 3D models / physical samples / product dimensions

We can then perform machining evaluation according to actual product requirements.

CNC Machining Meets Non-Standard Requirements

For products that cannot be directly satisfied by the 50×44mm standard profile, customization can be achieved through subsequent CNC machining.

For example:

Interface openings + mounting holes + threaded holes + heat dissipation slots + grooves + steps + logo

All can be machined according to customer drawings.

Product Selection Guide

If Your PCB Width Is Close to 50mm

50×44mm is an ideal choice — the 50mm width provides ample PCB routing space, and the 44mm height can accommodate taller components. Whether the actual structure is suitable can be confirmed according to PCB thickness, mounting method, and internal component height.

If Your Device Contains Taller Components

The 44mm height can accommodate taller components such as electrolytic capacitors (25-35mm), transformers, heat sinks, and relays, suitable for electronic equipment requiring larger internal space.

If Your Device Generates Significant Heat

The aluminum alloy enclosure has excellent thermal conductivity. Combined with the larger surface area of 50×44mm, it can effectively help internal components dissipate heat. Heat dissipation slots or ventilation holes can be machined on the enclosure to further enhance the heat dissipation effect.

If PCB Lengths Differ

The profile can be cut according to product length, and the same cross-section specification can adapt to products of different lengths.

If Interfaces Need to Be Installed

CNC openings can be added to the profile body or end plates. Common ones include USB, RJ45, power interfaces, aviation plugs, BNC interfaces, indicator lights, etc.

If You Need More Space

A larger aluminum profile specification can be reselected according to PCB dimensions, or a non-standard enclosure design can be carried out.

Workshop Show

FAQ

1. What products is the 50×44mm aluminum enclosure suitable for?

50×44mm belongs to the ample-space aluminum enclosure category, suitable for power modules, power amplifiers, industrial controllers, measuring instruments, communication base station equipment, motor drive modules, medical testing instruments, etc. The 50mm width supports multi-interface layout, and the 44mm height can accommodate taller components and heat sinks.

2. Is 50×44mm the length of the enclosure?

No. 50×44mm refers to the cross-section size of the enclosure (width × height). The product length can be cut according to actual equipment and PCB length.

3. Can the length of the 50×44mm aluminum enclosure be customized?

Yes. The length of the aluminum extrusion enclosure can be cut according to product requirements. The specific length needs to be confirmed in combination with material, surface treatment, and product structure.

4. Can the 44mm height accommodate electrolytic capacitors?

Yes. Common electrolytic capacitors are usually 25-35mm in height, and the 44mm internal height can fully accommodate them. Specific confirmation is needed according to your component dimensions.

5. Can heat dissipation holes be made on the aluminum enclosure?

Yes. Boyuan Hardware can machine heat dissipation slots, ventilation holes, heat dissipation ribs, and other heat dissipation structures according to customer drawings to help high-power equipment dissipate heat.

6. Can interfaces such as aviation plugs and BNC be machined?

CNC machining can be performed on the corresponding interface positions according to customer drawings. Whether it is specifically suitable for machining needs to be confirmed according to interface dimensions and enclosure structure.

7. Can a PCB be installed?

Yes. The 50×44mm aluminum enclosure is standard-equipped with internal circuit board card slots, and the PCB can be directly inserted and fixed. Corresponding mounting structures can also be designed according to PCB dimensions and mounting method.

8. Can end plates be customized?

Yes. The dimensions, hole positions, and structure of the end plates can be machined according to product requirements.
