44×23mm Aluminum Data Acquisition Equipment Enclosure

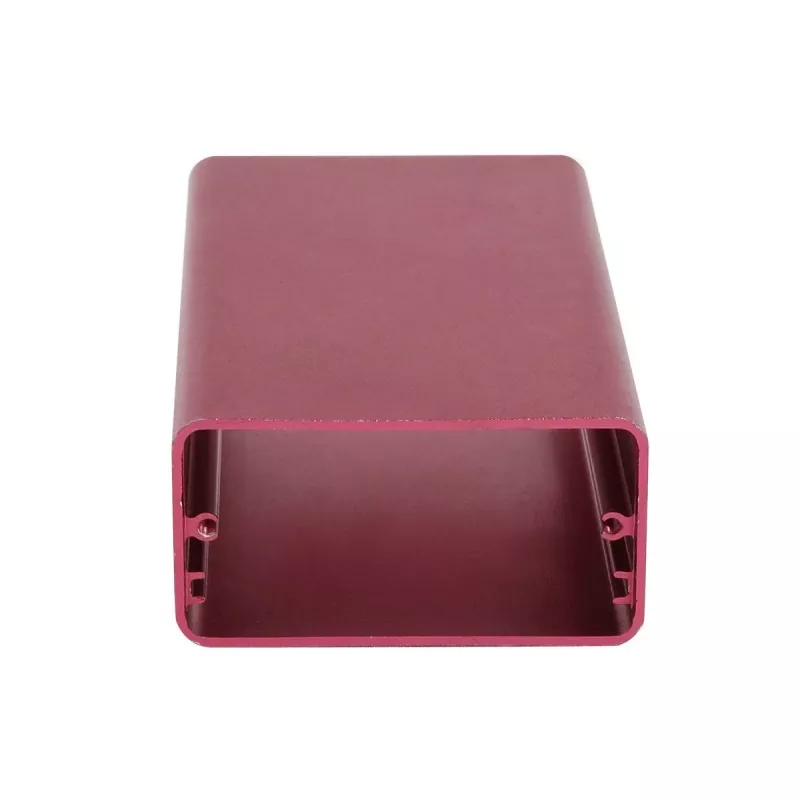

44×23mm Aluminum Data Acquisition Equipment Enclosure — a low-profile extruded aluminum housing positioned between small electronic modules and larger control equipment. Its 44mm width provides lateral layout room for PCBs and connectors, while the 23mm height keeps the overall device compact. This makes it well-suited to products that must accommodate a circuit board, several interfaces, and a moderate number of components without becoming excessively tall.

Length is cut to the PCB and device dimensions, and subsequent CNC machining, drilling, tapping, interface openings, end plate machining, and logo processing turn the standard profile into a complete custom aluminum enclosure. Boyuan Hardware, with over 20 years of experience and a ~10,000㎡ factory, supplies cutting, CNC, drilling, tapping, surface treatment, laser engraving, silkscreen, inspection, and assembly.

Product Definition

The 44×23mm aluminum enclosure is an extruded aluminum electronic housing suitable for small-to-medium PCBs, circuit control modules, communication modules, data acquisition equipment, and embedded electronic products.

44×23mm adopts a wider, lower cross-section structure: the 44mm lateral dimension provides a certain layout space for PCBs and electronic components, while the 23mm height keeps the overall device structure compact.

This size is more suitable for products between small electronic modules and larger control equipment. Especially when the product needs to install a PCB, interfaces, connectors, and a certain number of electronic components, while not wanting the enclosure to be too tall, 44×23mm has good applicability.

The enclosure can be fixed-length cut according to the PCB and device length, and combined with CNC machining, drilling, tapping, interface openings, end plate machining, and logo processing to form a complete custom aluminum electronic enclosure.

Core Advantages

1. 44mm Lateral Space, Suitable for PCB and Interface Layout

The most notable feature of 44×23mm is its relatively ample width while maintaining a low height.

The 44mm lateral dimension provides layout space for electronic components, connectors, and interfaces on the PCB, suitable for electronic modules that need lateral arrangement of circuit components.

Especially suitable for:

• PCB control modules
• Data acquisition modules
• Signal conversion modules
• Communication modules
• I/O modules
• Embedded electronic devices

Compared to narrower aluminum profile specifications, this type of cross-section provides more lateral margin for internal structure design.

2. 23mm Height, Balancing Internal Space and Device Thickness

23mm height is a relatively low-profile electronic enclosure specification.

It is not like a 13mm ultra-thin enclosure that mainly targets low-height electronic components, nor like an enclosure around 29mm that emphasizes larger internal height.

Therefore, 44×23mm is more suitable for: electronic devices that need a certain internal space but also want to control the overall product height.

This allows it to cover a relatively wide range of industrial electronic and communication electronic modules.

3. Suitable for Combinations of PCB, Interfaces, and Electronic Components

In actual electronic products, the enclosure usually not only needs to accommodate the PCB, but also needs to handle:

• Power interfaces
• Communication interfaces
• Signal interfaces
• Terminal blocks
• Indicator lights
• Buttons
• Connectors

44×23mm can be post-machined according to the specific positions of these components, turning the profile enclosure from a standard cross-section into a custom enclosure that fits the device structure.

4. Length Can Be Adjusted According to PCB and Product Structure

44×23mm is the enclosure cross-section specification, and the final product length can be adjusted according to the internal circuit board and electronic components.

Therefore, the same 44×23mm specification can correspond to product series of different lengths:

For product series development, the same cross-section can be maintained while forming different models by changing the length.

Technical Specifications

Note: Actual aluminum alloy grades, profile wall thickness, internal structure, length ranges, machining tolerances, and surface treatment requirements need to be confirmed according to specific drawings or orders.

Application Scope

1. Industrial Control Modules

44×23mm can be used for various small-to-medium industrial electronic modules, such as:

• PLC peripheral modules
• I/O modules
• Industrial control modules
• Signal conversion modules
• Data acquisition modules
• Embedded control modules
• Automation equipment electronic modules

These products usually need to accommodate both PCBs and interface components, so compared to particularly small aluminum enclosures, a certain lateral layout space is required.

2. Data Acquisition and Signal Conversion Equipment

Suitable for:

• Data acquisition modules
• Signal acquisition modules
• Signal converters
• Data conversion modules
• Sensor interface modules
• Monitoring modules

These devices usually need to install PCBs, connectors, and a certain number of electronic components. 44×23mm can provide relatively compact structural space.

3. Communication and Data Transmission Modules

Can be used for:

• Communication modules
• Data transmission modules
• Communication interface modules
• Signal conversion devices
• Network communication electronic modules
• Embedded communication devices

The end face or side can be opened according to the interface layout, so that a complete connection is formed between the circuit board and external devices.

4. IoT and Smart Electronic Modules

Can be used for:

• IoT control modules
• Smart monitoring modules
• Data acquisition terminals
• Remote control modules
• Smart sensor electronic modules
• Embedded smart devices

For products that need to keep the device compact while requiring a certain PCB layout space internally, this specification is more suitable.

5. Small Instruments and Test Equipment

Can also be used for:

• Measurement modules
• Detection modules
• Test electronic modules
• Signal processing modules
• Instrument internal control modules
• Small monitoring devices

If there are tall electronic components inside, it is necessary to confirm during selection whether the 23mm height can meet the actual installation space.

Customizable Content

Workshop Show

FAQ

What products is the 44×23mm aluminum enclosure suitable for?

Mainly suitable for PCB electronic modules, industrial control modules, communication modules, data acquisition modules, signal conversion modules, IoT devices, and small instrument electronic modules.

Is the 44×23mm aluminum enclosure suitable for PCBs?

Suitable for small-to-medium PCB electronic modules, but specific adaptability needs to be confirmed according to PCB dimensions, mounting method, component height, and profile internal structure.

What is the difference between 44×23mm and 42×23mm?

Both have the same height, but 44×23mm has a larger lateral dimension. Therefore, when more lateral PCB layout space, interfaces, or electronic component mounting space is needed, 44×23mm can be prioritized.

Can the length of the 44×23mm enclosure be customized?

Yes. 44×23mm is the cross-section size, and the actual enclosure length can be fixed-length cut according to the PCB and product structure.

Can interfaces and mounting holes be machined?

Yes. Interface openings, mounting holes, threaded holes, and other three-axis CNC machining can be performed according to 2D/3D drawings.

Can a logo be made?

Laser engraving or silkscreen printing can be used.

Can samples of 44×23mm Aluminum Data Acquisition Equipment Enclosure be made first?

Yes. Sample machining can be performed first, used to confirm PCB mounting, internal space, interface positions, and overall assembly.
